Sonodyne SRP 800 8″ Active Studio Monitor

Description

Sonodyne SRP 800 8″ Active Studio Monitor Overview:

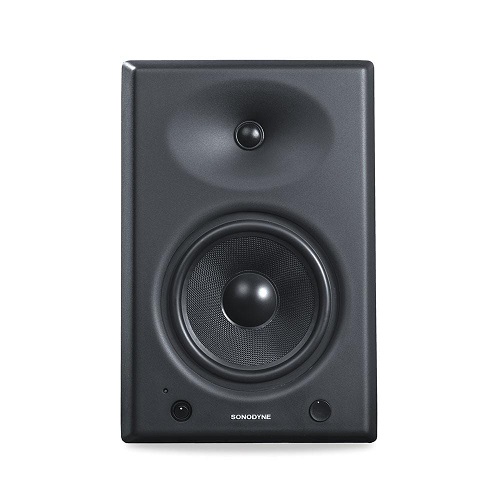

The SRP 800 is a new high power active reference monitor. This SRP is excellent for loud monitoring without any audible loss in detail. The enclosure is pressure die cast aluminum that maximizes rigidity and lends it a unique form. The silk dome tweeter is nested in a custom waveguide to produce on and off axis linearity and a wide, detailed soundstage. The 8 ” kevlar woofer produces deep bass and exceptional transient response. A new 175 + 100 watt biamplifier drives the transducers optimally while providing adequate headroom and dynamics. The maximum SPL measures in at an impressive 112dB. DSP based internal processing with high quality ADC and DAC is employed for the crossover and also provides the 0.75dB step calibrated HF and LF room compensation EQs at the rear. On the front is a level control ranging from mute to +6dB with centre detent at 0dB. Tapped inserts at the rear and bottom allow for various mounting options. The SRP 800 accepts XLR balanced inputs and is available in the following durable powder coat finishes: rich black, charcoal grey or snow white.

HIGHLIGHTS

• Rigid Aluminum die cast enclosure
• Class H: Biamplifier
• 8″ kevlar woofer
• 1″ HF in custom waveguide
• Discrete EQ in 0.75 dB steps
• Internal DSP balance

SPECIFICATIONS

• DESCRIPTION: 2 way biamplifier speaker
• ENCLOSURE: Pressure die cast aluminum, vented, through rear-firing aerodynamic port
• TRANSDUCER COMPLEMENTS: HF Magnetically shielded 26mm silk dome tweeter with custom waveguide
• TRANSDUCER COMPLEMENTS: LF Magnetically shielded 8″ kevlar cone woofer in die-cast chassis
• AMPLIFIER POWER BEFORE CLIPPING LF: 150 W, HF: 100 W
• AMPLIFIER THD AT RATED POWER: < 0.04%
• MAX SPL @ 1M: 112 dB
• FREQUENCY RESPONSE: 42 Hz ~ 22 kHz (+/- 2 dB)
• USABLE FREQUENCY RANGE (-10 DB): 37 Hz ~ 25 kHz
• CROSSOVER FREQUENCY: 1.8 kHz
• CMRR: >65 dB
• INPUTS: Fully balanced through XLR & TRS sockets
• INPUT LEVEL FOR 90 DB SPL @ 1M: +7 dBU
• CONTROLS – FRONT: Power Switch and Gain Control

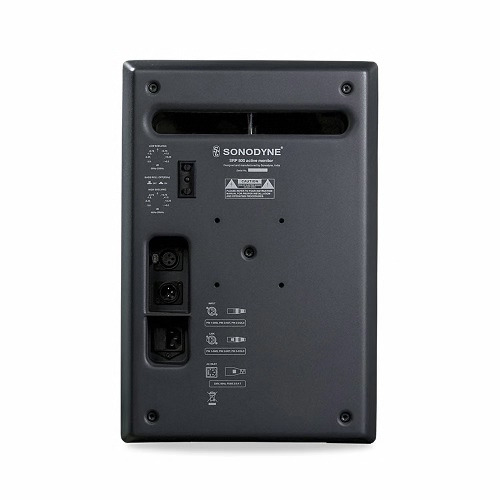

• CONTROLS – REAR: Low shelving, High shelving, Bass roll-off
• PROTECTION: Over current, Overheat , RFI, Switch on/ off transients
• INDICATOR: Power ON /OFF
• GAIN CONTROL RANGE: -70 dB ~ +10 dB, 0 dB at (detented) centre
• HIGH SHELVING EQ: 4 kHz ~ 20 kHz, -3 dB ~ +3 dB in 0.75 dB steps
• LOW SHELVING EQ: 50 Hz ~ 250 Hz, -3 dB ~ +3 dB in 0.75 dB steps
• BASS ROLL-OFF: 63 Hz, 12 dB/ octave
• SIGNAL TO NOISE RATIO (AT UNITY GAIN): > 90 dB, referred to full output
• FINISH: Powder coated (grey)
• COLOURS: Grey/ White/ Black
• DIMENSIONS (HXWXD): MM 434 x 291 x 280
• POWER CONSUMPTION: 345 VA Max.
• POWER REQUIREMENT: 230 VAC, ±10%, 50 Hz, 120 V optional
• NET WEIGHT: 17 kg
• WALL MOUNT BRACKET: SRP WB3
• MOUNTING OPTIONS: 4 x M6 inserts on rear, 4 x M6 inserts on bottom
