Description
Specifications:
DESCRIPTION: 2 way bi-amplifier speaker
ENCLOSURE: Pressure die-cast aluminum, sealed
TRANSDUCER COMPLEMENTS: HF: Magnetically shielded 26mm silk dome tweeter mounted on waveguide
TRANSDUCER COMPLEMENTS: LF: Magnetically shielded 3″ glass fibre cone woofer
AMPLIFIER POWER BEFORE CLIPPING: LF: 15 W, HF: 15 W
AMPLIFIER THD AT RATED POWER: < 0.1 % MAX SPL @ 1M: 95 dB
FREQUENCY RESPONSE: 95 Hz ~ 22 kHz (+/-2 dB) USABLE
FREQUENCY RANGE (-10 DB): 80 Hz ~ 25 kHz
CROSSOVER FREQUENCY: 2.7 kHz CMRR: > 65 dB
INPUTS: Fully balanced through XLR & TRS sockets, unbalanced RCA
INPUT LEVEL FOR 90 DB SPL @ 1M: +2 dBU

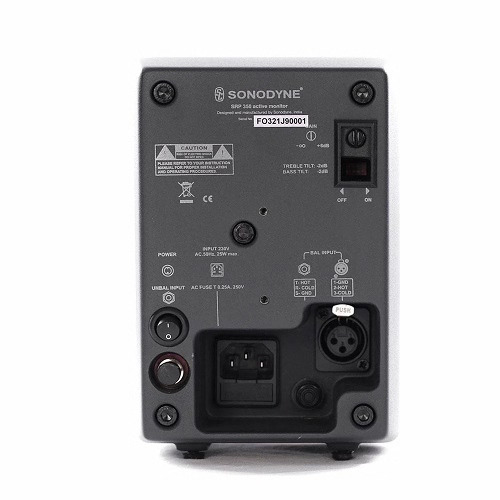

CONTROLS – REAR: Gain, Power, Bass tilt, Treble tilt PROTECTION: Over current, Overheat , RFI, Switch on/ off transients INDICATOR: Power ON /OFF GAIN
CONTROL RANGE: -∞ to +6 dB, 0 dB at center position
SIGNAL TO NOISE RATIO (AT UNITY GAIN): > 90 dB, referred to full output
FINISH: Powder coated (grey/white/black)
COLOURS: Grey/ White/ Black
DIMENSIONS (HXWXD) MM: 184 x 125 x 120
POWER CONSUMPTION: 45 VA Max.
POWER REQUIREMENT: 230 VAC, ±10%, 50 Hz; 120 V optional
NET WEIGHT: 2.5 kg
WALL MOUNT BRACKET: SRP WB1
MOUNTING OPTIONS: 2 x M6 inserts on rear 4 x M6 inserts on base
