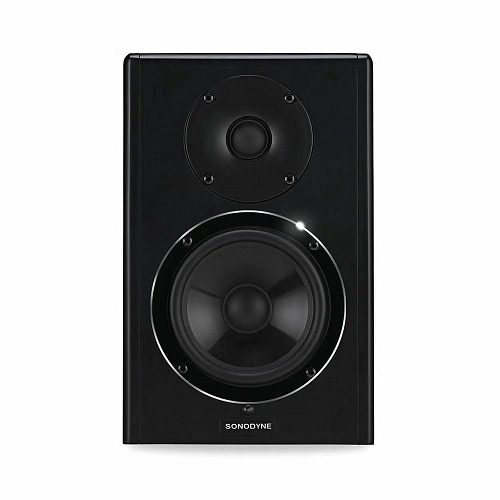

Sonodyne PM 50 V2 Professional Active Studio Monitor
The PM is our newest range of professional active loudspeakers for the producing musician. In home or project studios, for tracking and for mixing, the PM 50V2 is ideal.
The enclosure is heavily braced double MDF panels. This renders the cabinet rigid. To add, the integrated isolation base minimises residual vibrations.
The woofer is PP, and the tweeter is silk, both ferro fluid cooled.
The biamplifier is Sonodyne Class D design providing 45 W + 45 W for the PM 50V2.
On board controls include HF, LF trims and bass roll-off. Gain trim control of -6 dB to +6 dB is also present. For loud and clear reproduction at an exceptional value, the PM Series is an unbeatable option.
• Highly braced MDF enclosure
• Class D: Biamplifier
• 5″ woofer with 1″ tweeter
• High, Low Shelving EQs
• Excellent detailing and dynamics
DESCRIPTION: 2-way active monitor
TRANSDUCER COMPLEMENTS: LF: 5″ injection-moulded PP cone woofer
HF: 26mm silk-dome neodymium magnet tweeter
Vented, through rear-firing aerodynamic port
ENCLOSURE MATERIAL: MDF
OVERALL FREQUENCY RESPONSE: 75Hz ~ 20kHz, (±3dB)
USABLE FREQUENCY RESPONSE: 65Hz ~ 22kHz, (±10dB)
MAX SPL, HALF SPACE: 104dB CROSSOVER FREQUENCY: 2.5kHz
AMPLIFIER POWER BEFORE CLIPPING:
TYPE: Class D
S/N RATIO (AT UNITY GAIN): >90 dB, referred to full output
THD AT RATED POWER: <0.04 %
INPUT LEVEL FOR 90dB SPL AT 1M: 0dBU
INPUT IMPEDANCE: 22KΩ
INPUT: One fully balanced XLR socket|
One unbalanced RCA socket .GAIN CONTROL RANGE: -70dB to +6dB
BASS TILT: -2dB , -4dB , -6dB @ 80Hz TREBLE TILT -2dB @ 15kHz
BASS ROLL-OFF: 100Hz, 6dB/ octave
CONTROLS & SWITCHES

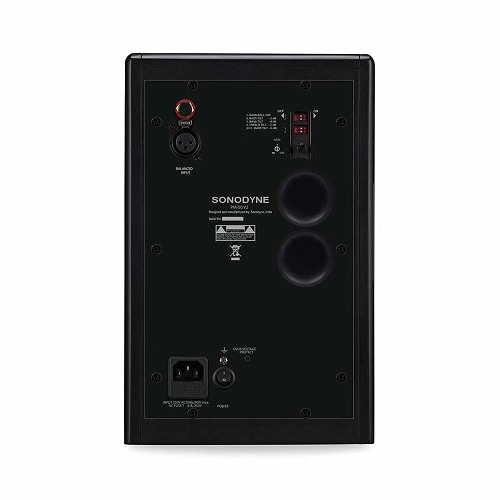

REAR: Power switch, volume control, 4 DIP switches for bass/ treble tilts & bass roll-off
INDICATORS: Power ON /OFF, Overvoltage protect
POWER REQUIREMENT: 230VAC, ±10%, 50Hz
POWER CONSUMPTION: 100VA Max.
PROTECTION: Over current, Overheat, RFI, Switch on/ off, Mains overvoltage
FINISH: Black PVC with black painted front
MECHANICAL DIM. (HxWxD) mm: 306 x 194 x 210
NET WEIGHT: 6.3kg
