Description
| Powered | Yes |
|---|---|
| Power Configuration | Bi-amped |
| LF Driver Size | 1 x 12″ |
| HF Driver Size | 1.4″ |
| LF Driver Power Amp | 800W |
| HF Driver Power Amp | 200W |
| Total Power | 1000W |
| Inputs | 2 x XLR/TRS Combo, 1 x Stereo |
| Outputs | 1 x XLR |
| Frequency Range | 52Hz-20kHz (-10dB) |
| Crossover Frequency | 2.1kHz |
| Maximum Peak SPL | 131dB |
| Horizontal Coverage Angle | 90 Degrees |
| Vertical Coverage Angle | 60 Degrees |
| Enclosure Material | Plastic |
| Mounting Options | Pole Mount with 1.37″ socket, Floor Wedge, 3 x M8 Fly Points |
| Power Source | Standard IEC AC cable |
| Height | 23.7″ |
| Width | 14.8″ |
| Depth | 13.7″ |
| Weight | 34.8 lbs. |

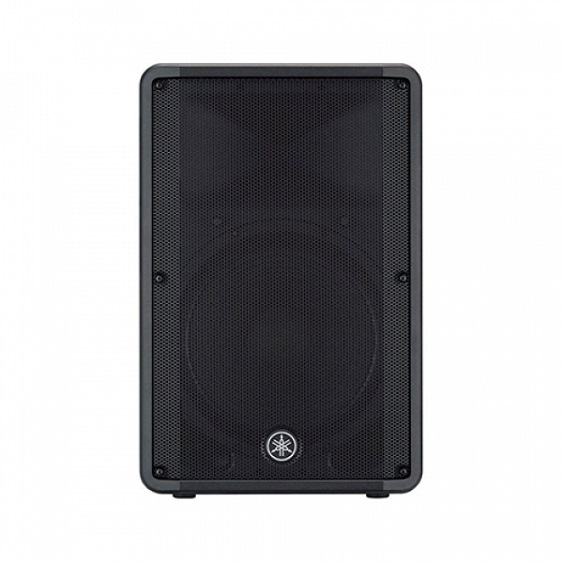

Yamaha DBR12 represents a perfect balance of size and performance, with 1000W of power and outstanding resolution at any output level. Ideal for front-of-house, floor monitoring applications or even the stage side fills, the DBR12 is an ideal choice for a wide range of applications.
High-Efficiency 1000W Class-D Amplifiers
The DBR’s lightweight, high performance Class-D amplifier is capable of producing up to 1000W* of power, achieving an SPL of 132dB, delivered with remarkable clarity and dynamic characteristics.*DBR10 has an output level of 700W.
Custom Designed Transducer
The high power output woofers deliver well-defined, powerful bass with minimal distortion, while the 1.4″ precision compression driver* produces accurate mid-range and high frequencies.*DBR10 features a 1″ compression driver.
A Rugged, Highly Portable Cabinet
DBR Series speakers feature a compact, lightweight, and durable plastic cabinet which offers the highest level of portability of all Yamaha powered speakers. The sleek steel grille bolsters cabinet durability and protects the internal components while a newly designed ergonomic handles provide effortless transportation and system setup.

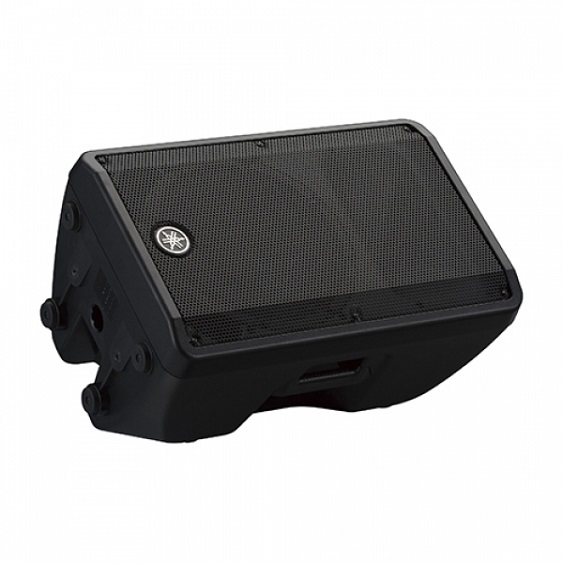

Smart Enclosure Design for Floor Monitoring
DBR Series speakers feature an optimized 50°wedge angle for floor monitoring. In addition the DBR12 and DBR15’s symmetrical shape allows for effortless configuration of a mirror-mode floor monitoring system in either symmetrical or stereo sound field setups.
Easy-to-use Onboard 2-Channel Mixer
DBR Series speakers have two input channels. CH1 has a combo jack which accepts both XLR and TRS Phone allowing for either Mic or Line level input signals. CH2 offers two input options; a combo jack that accepts XLR or TRS Phone, and an RCA pin jack for input from CD players or other stereo line-level sources. The onboard mixer allows you to select either CH1+2 MIX to mix the signal of CH1 and CH2, or CH1 THRU to pass the signal from CH1 only.
- Speaker type: 2-way, Bi-amp powered speaker, Bass-reflex type
- Frequency range (-10dB): 52Hz – 20kHz
Components
- LF: Diameter:12″ cone, Voice Coil:2″, Magnet:Ferrite
- HF: Diaphragm:1.4″, Type: 1″ throat compression driver, Magnet:Ferrite
- Crossover: 2.1kHz: FIR-X tuning™ (linear phase FIR filter)
- Output power: Dynamic:1000 W (LF: 800 W, HF: 200 W) / Continuous: 465 W (LF: 400 W, HF: 65 W)
- Maximum output level (1m; on axis): 131dB SPL
- I/O connectors: NPUT1: Combo x1, INPUT2: Combo x 1 + RCA pin x 2 (Unbalanced), OUTPUT: XLR3-32 x 1 (CH1 Parallel Through or CH1+CH2 Mix)
- Processors: D-CONTOUR: FOH/MAIN, MONITOR, OFF
- Heat dissipation: Fan cooling, 4 speeds
- Power requirements: 100 V, 100-120V, 220-240 V, 110/127/220V (Brazil), 50/60Hz
- Power consumption: 74W(1/8 Power Consumption), 18W(Idle)
- Cabinet material: Plastic
- Handle: Side x 2
- Flying and mounting hardware: Bottom x 2, Rear x 1 (Fit for M8 x 15 mm eyebolts)
- Pole socket: 35mm (Bottom x 1)
Dimensions
- W: 376mm (14.8″)
- H: 601mm (23.7″)
- D: 348mm (13.7″)
