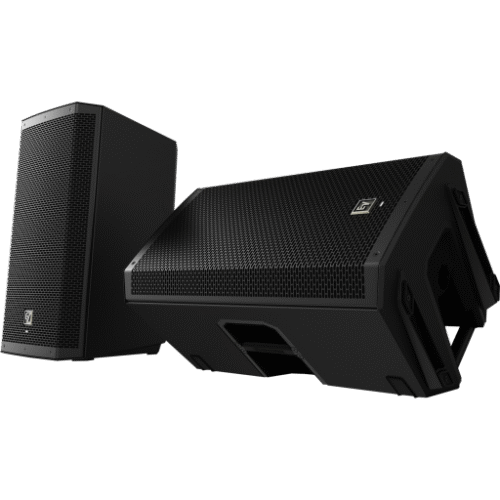

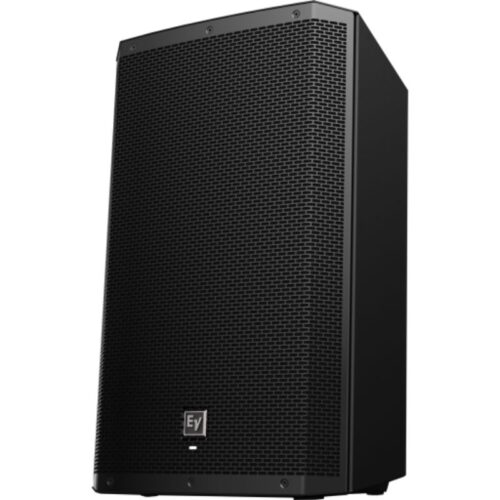

Big sound doesn’t need to take up a lot of space. Ideal for main loudspeaker or monitor wedge duties, the ZLX-12 offers the ultimate combination of performance and portability – and always looks great on stage
SPECIFICATIONS
| Frequency Response | 82 Hz – 18 kHz¹ |
| Frequency Range | 55 Hz – 20 kHz |
| Axial Sensitivity | 95 dB |
| Maximum SPL | 125 dB |
| Recommended HP Frequency | 40 Hz |
| Coverage (Hort. x Vert.) | 90° x 60° |
| Power Handling | 250 Watts Continuous, 1000 Watts Peak |
| LF Transducer | EVS-12K, 300 mm (12 in) Woofer |
| HF Transducer | DH-1K |
| Crossover Frequency | 2.1 kHz |
| Nominal Impedance | 8 Ω |
| Minimum Impedance | 7 Ω |
| Connectors | Dual NL4 |
| Enclosure | Polypropylene |
| Grille | 18 Gauge Steel with Black Powder Coat |
| Dimensions | (H x W x D) 610 mm x 356 mm x 356 mm (24 in x 14 in x 14 in) |
| Net Weight | 14.9 kg ( 32.8 lb) |
| Shipping Weight | 18.0 kg ( 39.6 lb) |
