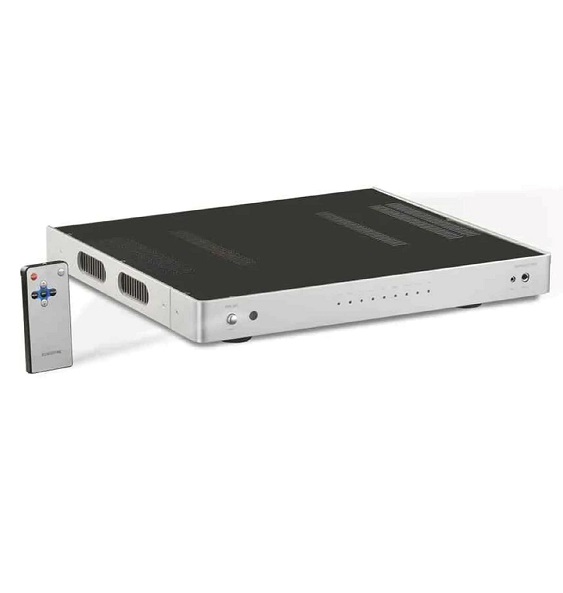

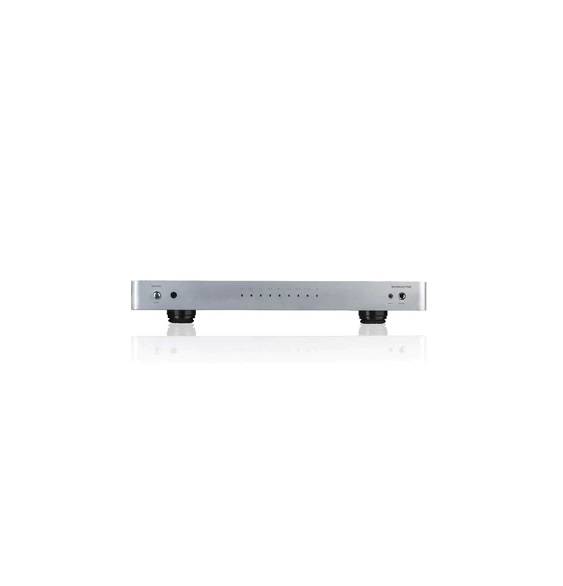

SONODYNE DSA 320-STEREO INTEGRATED AMPLIFIER
Sonodyne is one of the oldest brand in hifi audio in Indian make.
Sonodyne DSA 320 stereo Integrated amplifier is a descent model in 2.1 channel with USB.
| DESCRIPTION | Stereo integrated amplifier |
| POWER: 4 OHM | 110 W before clipping |
| POWER: 8 OHM | 80 W before clipping |
| THD AT RATED POWER | 0.01% |
| MAX INPUT | 3 V |
| INPUTS – ANALOG | 2 x RCA stereo; 1 x Mini EP stereo |
| INPUTS – DIGITAL | Coaxial – SPDIF type, 24 bit, maximum sampling frequency 96 kHz; Optical – SPDIF type, 24 bit, maximum sampling frequency 96 kHz; USB – Audio class 1.0 |
| CONTINUOUS POWER HANDLING | 125 W x 2 @ 4 Ohm; 85 W x 2 @ 8 Ohm |
| OUTPUTS | 1 x XLR balanced stereo; 1 x RCA unbalanced stereo; 1 x Mini EP stereo; 2 x speaker socket |
| INDICATOR | LED (standby, input, mute, power, vol) |
| SWITCH | Power switch on front panel |
| REMOTE CONTROL FUNCTIONS | Standby Power, mute, input select, vol up, vol down |
| GAIN | 0 dB |
| CHANNEL SEPARATION | 60 dB |
| CROSSTALK | 80 dB |
| HEADPHONE OUTPUT | 400 mV into 32 Ohms |
| VOLUME CONTROL RANGE | 70 dB |
| VOLUME SETTING ON POWER UP | -40 dB |
| SIGNAL TO NOISE RATIO (ANALOG) | A-weighted : 95 dB, referred to maximum output |
| SIGNAL TO NOISE RATIO (DIGITAL) | A-weighted : 115 dB, referred to maximum output |
| FINISH | Silver painted front and back, matt black top, rear and bottom |
| COLOURS | Silver |
| DIMENSIONS (HXWXD) MM | 66 x 442 x 385 (with legs) |
