PreSonus Temblor T10

Description

To hear what’s really going on at the bottom of your mixes, you need a subwoofer that speaks the truth. The Temblor® T10 lets you take charge of the low-frequency foundation of your mix with a combination of quality components and design, plenty of inputs and outputs, and extensive user controls not normally available in this price range.

Customize your system until it’s just right.
The T10 provide more user controls than any other subwoofer in their class, enabling seamless integration into your listening environment.

​Versatile I/O works with any setup.
No other subwoofer anywhere close to the Temblor’s price range offers a comparable selection of inputs and outputs.

Features:
Main components

•     10-inch, front-firing, glass-composite low-frequency transducer
•     Front-firing, bass-reflex acoustic port

​Controls and filters

•     Input gain control (-30 dB to +6 dB, continuously variable)
•     Continuously variable lowpass filter (50 Hz to 130 Hz)
•     Built-in crossover
•     Switchable highpass filter removes frequency content below 80 Hz from the full-range signal sent from the Temblor outputs to the main monitors
•     Momentary footswitch (included) bypasses the subwoofer, highpass filter, and Sub Out
•     Polarity invert
•     Ground-lift switch

Power and safety

•     T10: 250 watt, Class AB amplification
•     Internal damping and heat sink
•     Integrated rubber feet for stable placement

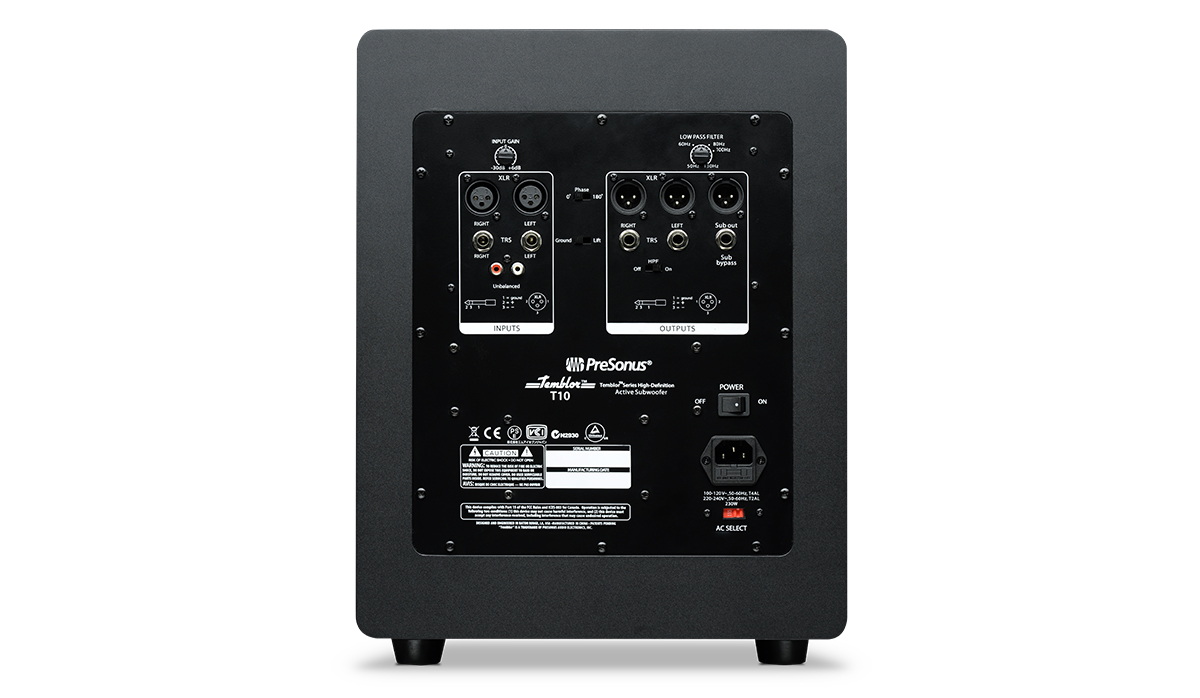

Inputs and outputs

•     Left and right, balanced XLR and ¼” TRS and unbalanced RCA main inputs
•     Left and right balanced XLR and ¼” TRS outputs
•     XLR subwoofer output for connecting a second T10

Specifications:
Inputs

• 2 – Balanced XLR
• 2 – Balanced 1/4″ TRS
• 2 – Unbalanced RCA

Outputs

•     2 – Balanced XLR (full range with 80Hz HPF option)
•     2- Balanced ¼” TRS (full range with 80 Hz HPF option
•     2- Unbalanced RCA (full range with 80 Hz HPF option)

Performance

• Frequency Response     20 Hz – 200 Hz
• Low Pass Filter Frequency     50 – 130 Hz (variable)
• Signal-to-Noise Ratio     >98 dB (A weighted)
• THD     0.019% @ power <160W
• Amplifier Power     250W peak, 170W RMS
• Power Consumption     230W
• Amplifier Type     Class AB
• Peak SPL at 1m     113 dB
• Woofer     10” glass-composite, Front-firing
• Acoustic Port     Front-firing bass reflex

User Controls

• Input Gain Range     -30 to +6 dB
• Polarity Switch     0° or 180°
• Low Pass Filter Control     50 Hz to 130 Hz
• Ground Lift Switch        On/Off
• High Pass Filter Switch     On/Off
• Bypass Footswitch       On/Off

Protection

•     RF interference
•     Output-current limiting
•     Over-temperature
•     Turn-on/off transient
•     Subsonic filter
•     External mains fuse

Power

•     100-120V ~50/60 Hz or 220-240V ~50/60 Hz

Cabinet

•     Vinyl-laminated MDF

Physical

• Width     12.6” (320 mm)
• Depth     15.75” (400 mm)
• Height     15.75″ (400 mm)
• Weight     39.46 lbs (17.9 kg)
