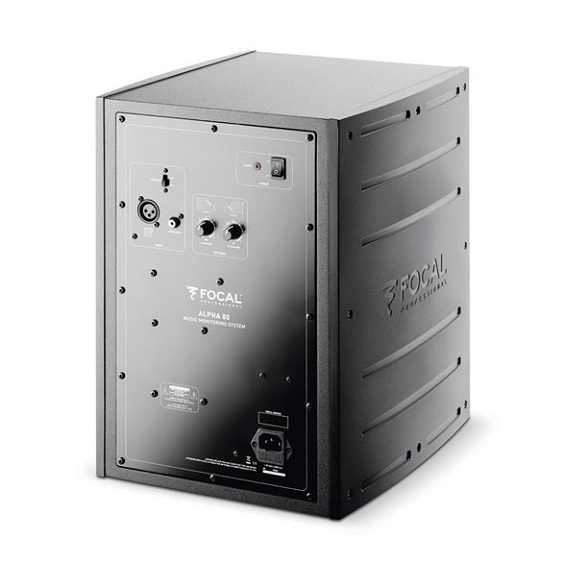

FOCAL ALPHA 80 ACTIVE STUDIO MONITOR SINGLE

Description

Flagship of the line, the monitoring loudspeaker Alpha 80 is particularly ideal for producing music which is rich in bass or which requires high power reserves. This model is composed of a 8” (21cm) woofer/ midrange speaker with a Polyglass cone loaded in a large laminar port and of a 1″ (25mm) aluminum inverted dome tweeter. It features a 40W amplifier for the tweeter and a 100W amplifier for the woofer, and has a frequency response of 35Hz to 22kHz (+/- 3dB).

FEATURES

• Low directivity: keeps the same sound throughout the room.
• Damping and rigidity: neutrality, no distortion.
• Tonal balance is identical at low and high volumes; low sensitivity to the wall effects.
• Connect up to 2 audio sources.
• Optimal acoustic integration.
• Reduced power consumption.

Alpha 80, the flagship of the line, is equipped with a 1″ (25mm) tweeter and an 8″ (21cm) woofer. It features a 40W amplifier for the tweeter and a 100W amplifier for the woofer, and has a frequency response of 35Hz to 22kHz (+/- 3dB). This model is particularly ideal for producing music which is rich in bass or which requires high power reserves.

• Type Monitoring Alpha 80
• Frequency response (+/- 3dB) 35Hz – 22kHz
• Power 140W (100W+40W)
• Maximum SPL 109dB SPL (pic @ 1m)

Electronic section

• Inputs Connectors XLR balanced 10kOhms RCA unbalanced 10kOhms with sensitivity compensation
• LF amplifier stage 100W, class AB
• HF amplifier stage 40W, class AB

Standby mode Standby

Activation of the monitor After about 30 minutes without using the monitor By signal detection >3 mV

• Power supply (The voltage can not be modified) 220-240V (fuse T1.6AL/250V) or 100-120V (fuse T3.15AL/250V)
• Connection IEC inlet and detachable power cord

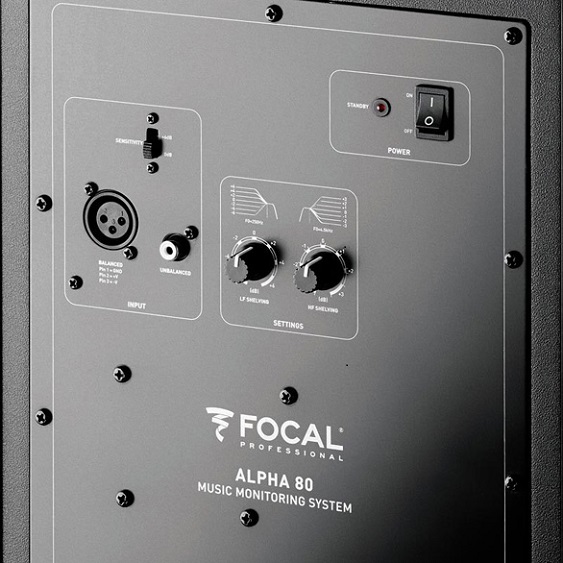

User controls

• Sensitivity Adjustable, 0 or +6dB
• LF shelving (0 – 300Hz) Adjustable, +/-6dB
• HF shelving (4.5 – 22kHz) Adjustable, +/-3dB
• Power ON/OFF Switch on rear panel
• Standby mode power consumption < 0,5W
• Indicators Power ON/OFF LED – Standby LED

Transducers

• Woofer 8″ (21cm) drive unit – Polyglass cone
• Tweeter 1″ (25mm) drive unit. Aluminium inverted dome

Cabinet

• Construction 0.6″ (15mm) MDF
• Finish Vinyl and Black painting
• Dimensions with 4 rubber pads (HxWxD) 15.6×11.3×13.7″ (397 x 287 x 348mm)
