Fluid Audio F8S (each)

Description

• Frequency Response: 30-200Hz

• Total amplifier power: 200 watts

• Signal-to noise: > 100dB (typical A-weighted)

• Polarity: positive signal at + input produces outward LF cone displacement

• Input impedance: 20k ohms balanced, 10k ohms unbalanced

• Input sensitivity: 85mV pink noise input produces 97dBA output SPL at one meter with volume control at maximum

• Power: factory programmed for either 100-120V ~60Hz, 220-240V ~50Hz

• Protection: RF interference, output current limiting, over temperature, turn on/off transient, subsonic filter, external main fuse

• Cabinet: vinyl-laminated, high acoustic efficient MDF

• Size: 13.4” x 10” x 10.5”, 340 x 254 x 270mm

• Weight: 18.7 lbs / 8.5 kg

Fader Series

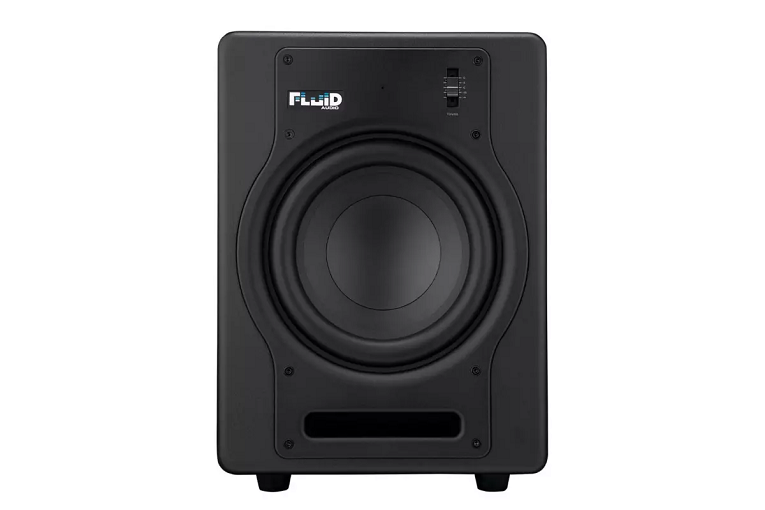

Designed for recording studios, gaming, home theaters and more, the Fluid Audio F8S active subwoofer delivers exceptional bass response in a compact footprint.

Many types of music benefit from bass extension – from Hip-Hop, to House, to Rock. Being able to hear your mix with this bass extension is critical to accurately creating your music. The F8S subwoofer allows you to hear every detail down to 30Hz – and in a compact size.

Mix Engineers want the confidence to know that their mixes translate well on all types of systems. That is why we included a standby footswitch. With a click of the included foot pedal, you can turn the bass on or off, and audition your mix with bass extension and without.

The F8S also has two built-in EQ settings that allow for two different settings – depending on your music: A more conventional Flat response, as well as a “Punch” setting that is perfect for Dance or other mid-bass heavy music.

For further flexibility, the F8S has a variable phase adjustment to fine tune the phase for optimal matching to your L/R monitors (0-180 degrees), a variable low pass crossover filter control (50-200Hz) and a 80Hz high pass filter (used with foot switch) for satellite connections.

Details

• 200 Watts of class D power with switching power supply

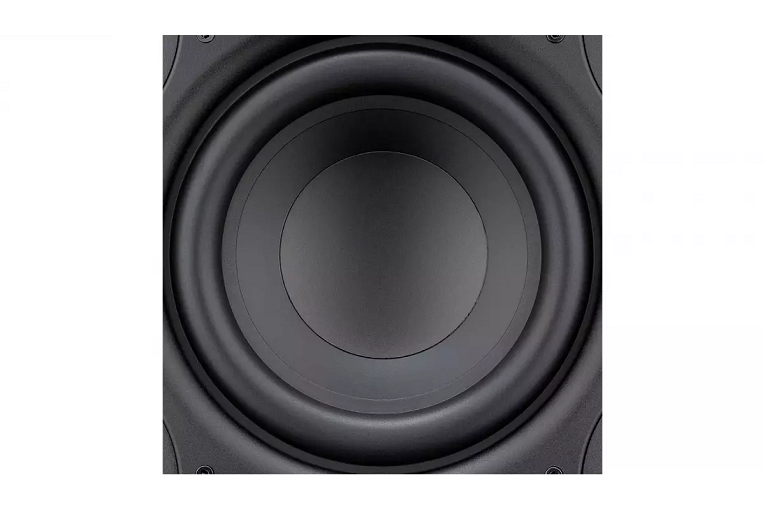

• 8-inch composite paper cone with high temperature voice coil and damped rubber surround

• active subwoofer

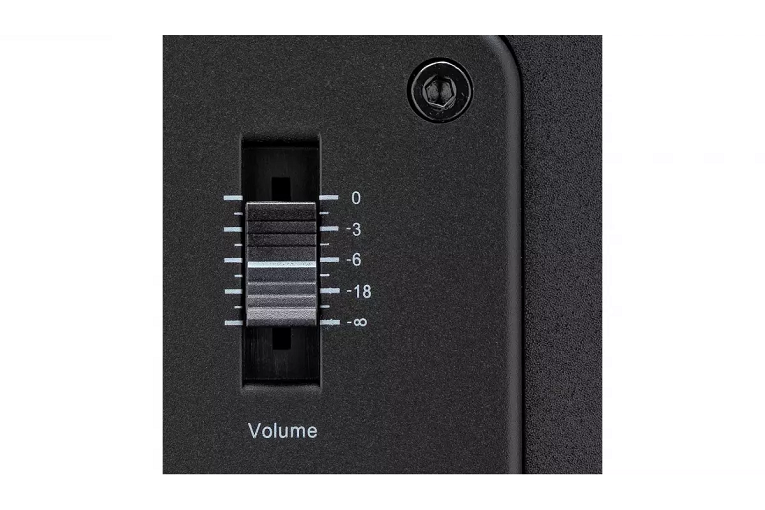

• front baffle Fader volume control

• bass-reflex vent port on front baffle for ease of placement

• amplifier standby function to conserve energy

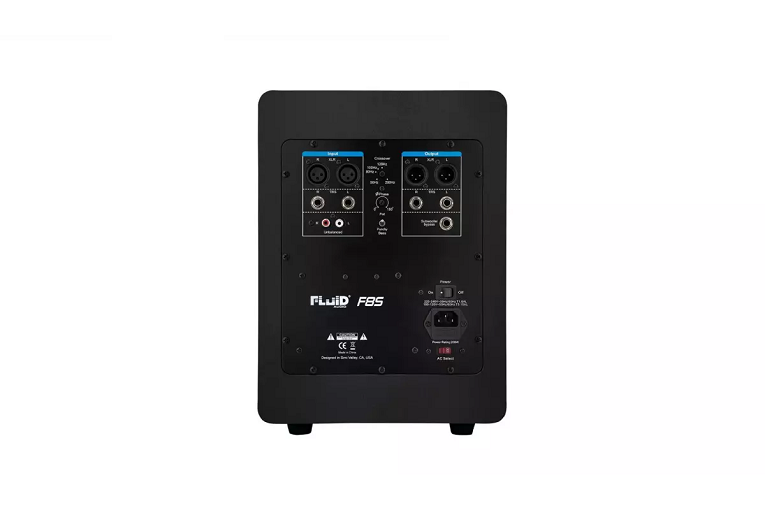

• XLR balanced and 1/4” balanced/unbalanced inputs and RCA inputs

• XLR balanced and 1/4” balanced/unbalanced outputs

• Variable lowpass filter control: 50Hz-200Hz

• Switch for both “Flat” and “Punchy” settings

• 80 Hz highpass filter(with foot switch) for satellite connections

• Included footswitch allows you to turn F8S on and off for auditioning with bass and without
