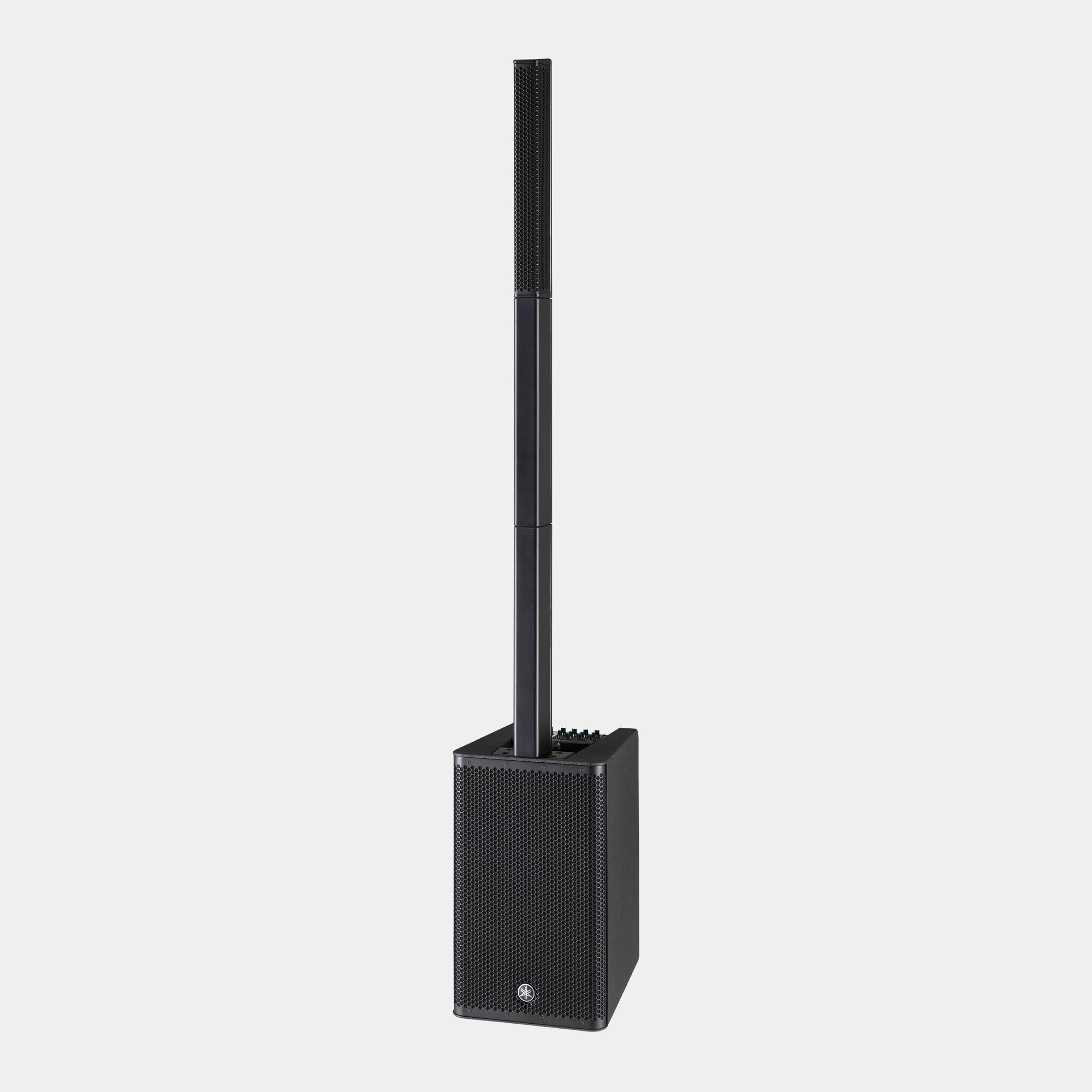

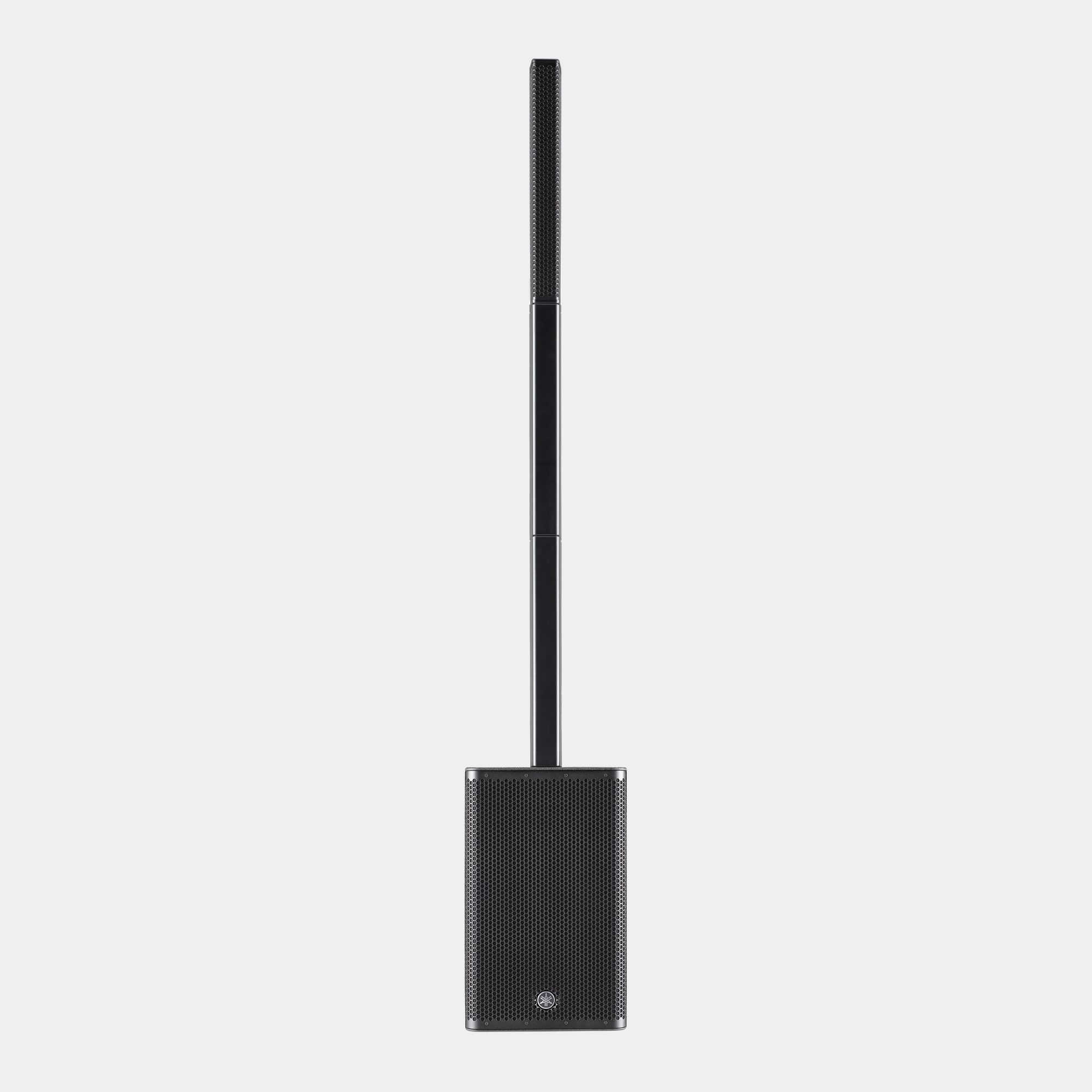

Yamaha STAGEPAS 1K 1000W Portable PA System with 5 Channel Digital Mixer

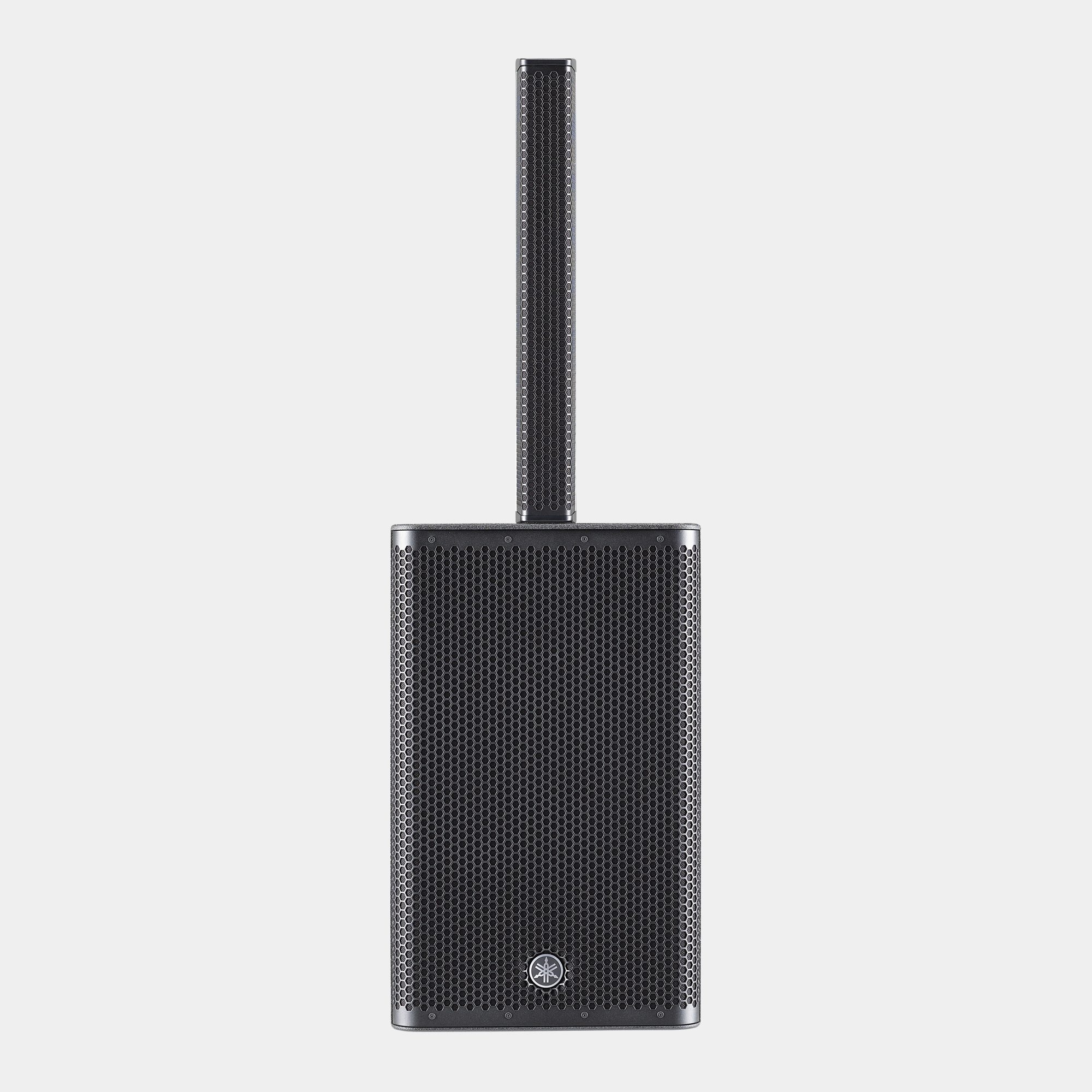

J-Curve Slim Line Array

The high-frequency speaker array is comprised of 10 small-diameter 1.5″ speakers. By adopting a J-curve array configuration, the high-frequency unit achieves vertical coverage of 30 ° across a span of 170 °. With such a long, 10-driver array design the STAGEPAS can deliver clear, high quality sound consistently over longer distances, projecting uniform, high-quality sound from the front to the rear of the audience.

Class-leading 12-inch “compact” subwoofer

The subwoofer features a 12-inch speaker unit which is hardly “compact,” and actually the largest in its class. However, for the STAGEPAS 1K’s new design we focused on reducing enclosure size and weight in order to improve portability, thus achieving the smallest class cabinet on the market for a subwoofer of this size and power. By incorporating Yamaha’s own Twisted Flare Port™ technology to reduce port wind noise that can occur with compact bass-reflex subwoofers, the low-end output is maximized, producing very deep, powerful, distortion-free bass.

High efficiency “1000” W Class-D amplifier

Also at the top of its class for output power, the 1000W Class-D amplifier module is capable of delivering an impressive 119 dB SPL from the deceptively compact speaker cabinet. And just as importantly, we’ve leveraged Yamaha’s decades-long experience as a manufacturer of professional PA products, and innovator of related technologies to ensure that with great power comes great stability, and that the STAGEPAS 1K maintains the same accurate, superior-quality sound even at high output.

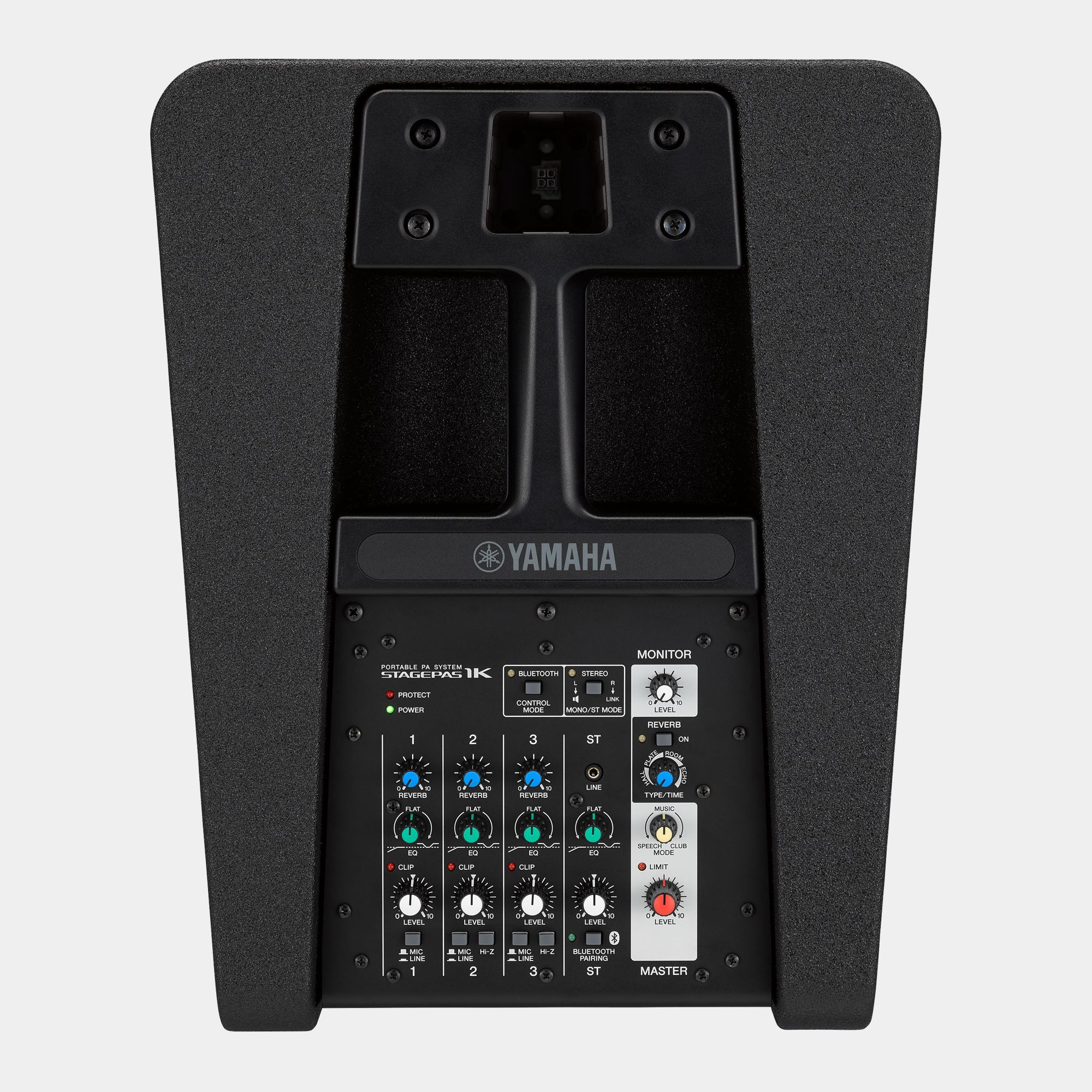

Digital mixer with versatile input

With outstanding flexibility for a PA system of this size, the 5-channel digital mixer features three channels of mono microphone/line inputs and stereo inputs, with two of the mono input channels equipped with Hi-Z connectivity for direct input of acoustic-electric guitars and other instruments. In addition to Phone and 1/8″mini jacks, the stereo connections support playback with Bluetooth devices as well as a wide range of input sources from instruments to CDs, PCs and smartphones.

Professional control with a single knob

STAGEPAS 1K comes equipped with a wealth of sound shaping functions, including 1-knob EQ for optimized multi band EQ setting, industry standard SPX reverb, and the “Mode” control for master output compression settings that match various applications such as “Speech” or “Music.” Each of these functions can be set via a single knob, and have simplified many of the tough tasks like EQ and compression to get you great sound fast.

1. SPX the standard digital reverb

One knob gives you access to four different high-quality reverb settings—perfect for vocals and acoustic instruments. Simply turn the knob to change the reverb type and time, and then you’re ready to apply just the right amount of high-resolution effect to each channel.

2. 1-knob EQ

Whether turning to the left to cut unnecessary low-end frequencies for speeches, or turning to the right to emphasize the bottom and high end for band performances, this innovative equalizer can dial in the perfect sound adjustment with a simple turn of the knob.

3. “MODE” for master output

The multiband compressor adjusts optimized compression settings to suit various applications. By selecting the setting closest to your application, you can add a more professional edge to your sound without having to learn difficult compression/audio engineering principles.

STAGEPAS Editor

STAGEPAS Editor is STAGEPAS 1K’s dedicated remote control application that allows users to adjust volume and EQ at a distance via Bluetooth during rehearsal or performance. You can also save the adjusted settings for certain songs or applications in order to shorten your setup process in the future and maintain consistency from one performance to the next.

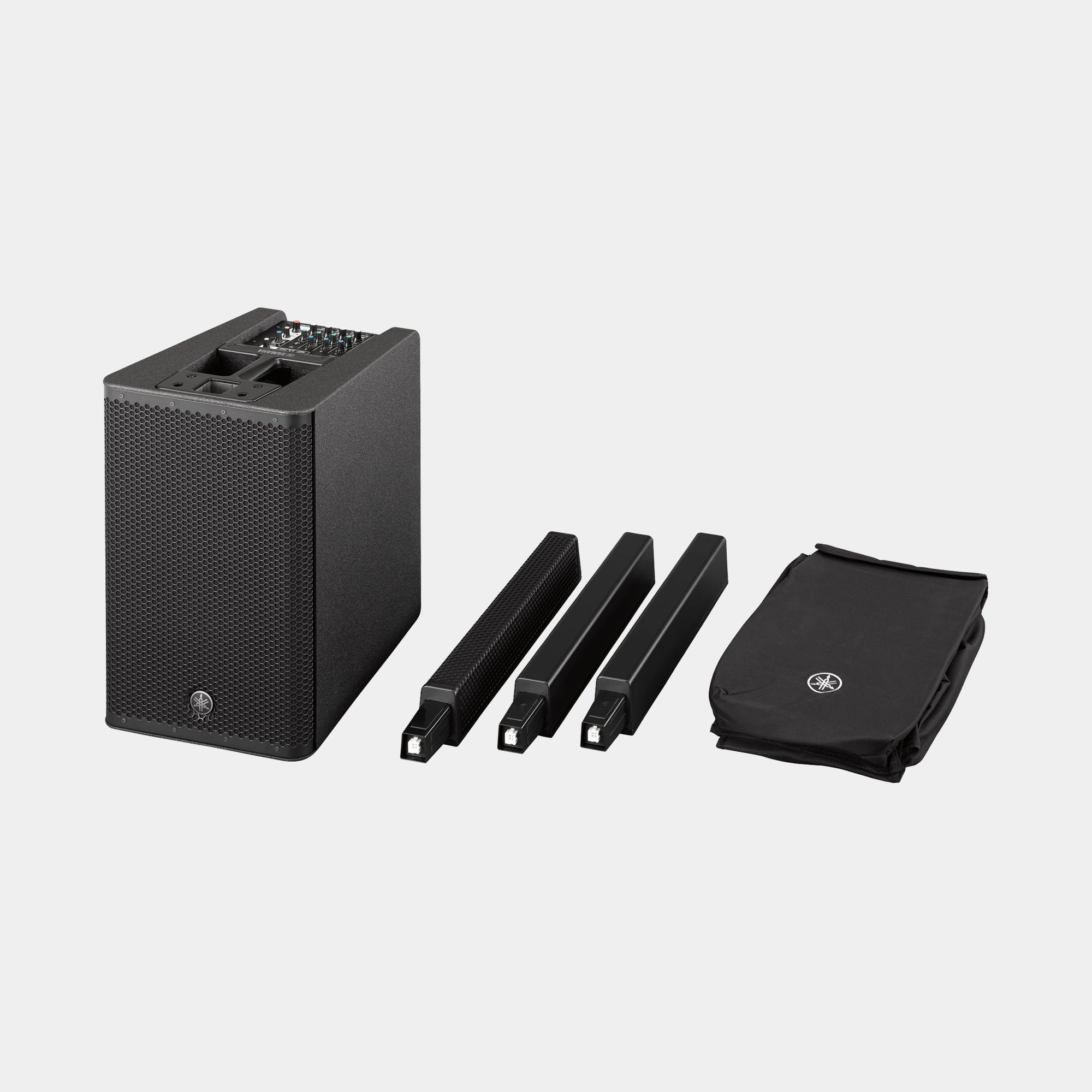

Simple setup

Simply place the 2 spacers and speaker unit into the subwoofer and setup is essentially done, with no cables, speaker stand, or additional gear required beyond the main unit. All you need is in the package.

High-grade polyurea coating

The lightweight ABS cabinet of subwoofer features a high-grade polyurea coating to prevent wear and tear during transport. It is light enough to make the system extremely portable, but also rugged and scratch-resistant enough to withstand harsh performance environments.

Scalability via linked STAGEPAS 1K systems

Linking two STAGEPAS 1K’s provides wider coverage area and higher output power for larger scale performances. Both stereo and mono playback are supported, and when set to mono, both STAGEAPAS 1K inputs can still be used (up to 6 mono inputs plus 2 stereo inputs).

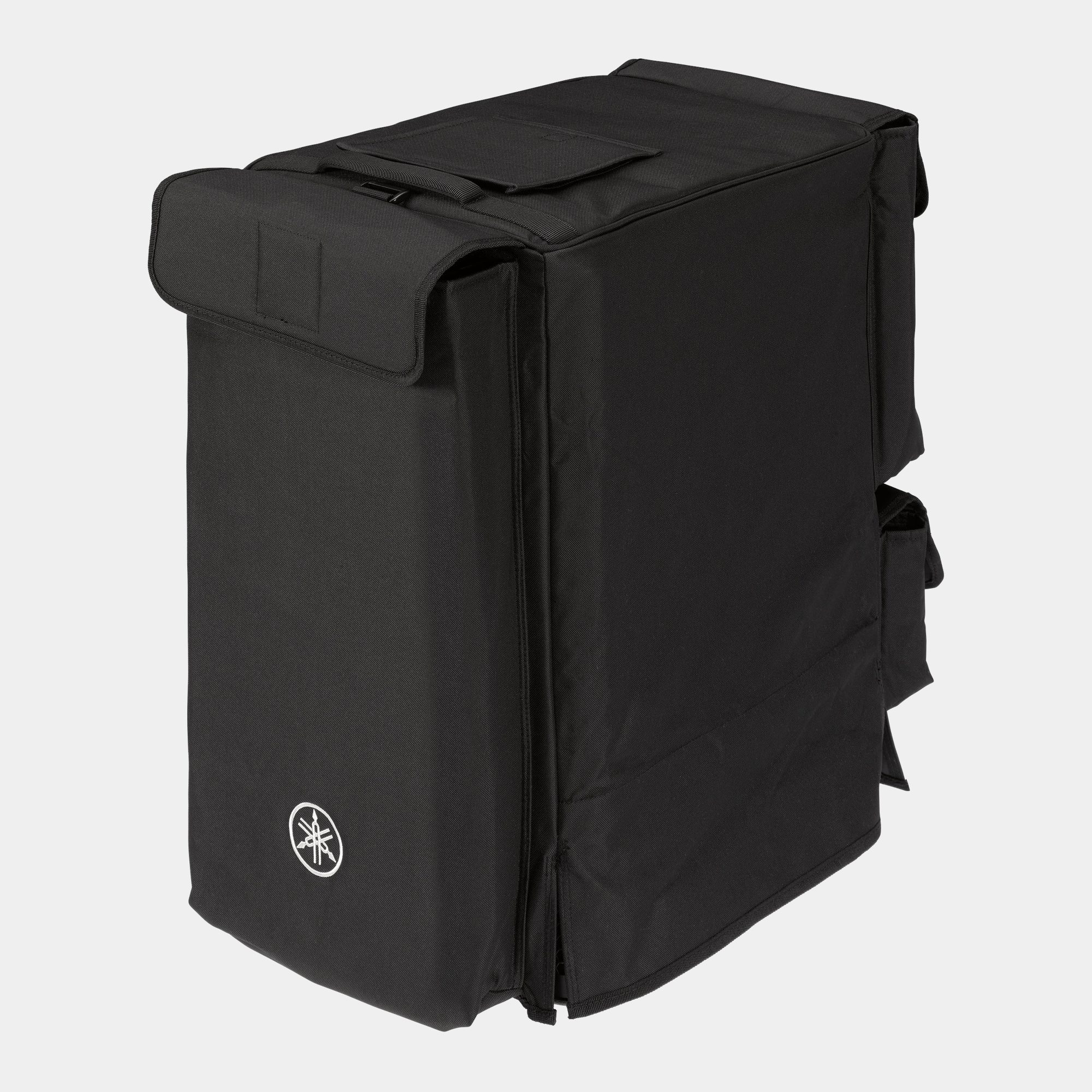

Fitted cover included

The STAGEPAS 1K comes with its own cover which, in addition to protecting the unit, has pouches for both spacers and speaker array as well as additional storage pockets for microphones, cables, etc., streamlining system setup and teardown.

Optional dolly

An optional dedicated dolly allows for more convenient transportation — particularly useful for performers transporting additional gear and instruments. Featuring a simple, sturdy mechanism that locks down the speaker cover the lightweight dolly enables smooth, reliable transportation.
