Description
| Powered | Yes |
| Power Configuration | Bi-amped |
| LF Driver Size | 1 x 10″ |
| HF Driver Size | 1″ |
| LF Driver Power Amp | 500W |
| HF Driver Power Amp | 200W |
| Total Power | 700W |
| Inputs | 2 x XLR/TRS Combo, 1 x Stereo |
| Outputs | 1 x XLR |
| Frequency Range | 55Hz-20kHz (-10dB) |
| Crossover Frequency | 2.1kHz |
| Maximum Peak SPL | 129dB |
| Horizontal Coverage Angle | 90 Degrees |
| Vertical Coverage Angle | 60 Degrees |
| Enclosure Material | Plastic |
| Mounting Options | Pole Mount with 1.37′ socket, Floor Wedge, 2 x M8 Fly Points |
| Power Source | Standard IEC AC cable |
| Height | 19.4″ |
| Width | 12.1″ |
| Depth | 11.4″ |
| Weight | 23.2 lb |
Yamaha DBR10 is the most compact model in its series and in its class. Capable of delivering a maximum SPL of 129dB from its compact enclosure, the DBR10 can be used as a utility speaker in a variety of environments.
High Efficiency 700W Class-D Amplifiers
The DBR’s lightweight, high performance Class-D amplifier is capable of producing up to 700W of power, achieving an SPL of 132dB, delivered with remarkable clarity and dynamic characteristics.
Custom Designed Transducer
The high power output woofers deliver well-defined, powerful bass with minimal distortion, while the 1″ precision compression driver produces accurate mid-range and high frequencies.
A Rugged, Highly Portable Cabinet
DBR series speakers feature a compact, lightweight and durable plastic cabinet which offers the highest level of portability of all Yamaha powered speakers. The sleek steel grill bolsters cabinet durability and protects the internal components while a newly designed ergonomic handles provide effortless transportation and system setup.
Smart Enclosure Design for Floor Monitoring
DBR Series feature an optimized 50 degree wedge angle for floor monitoring.

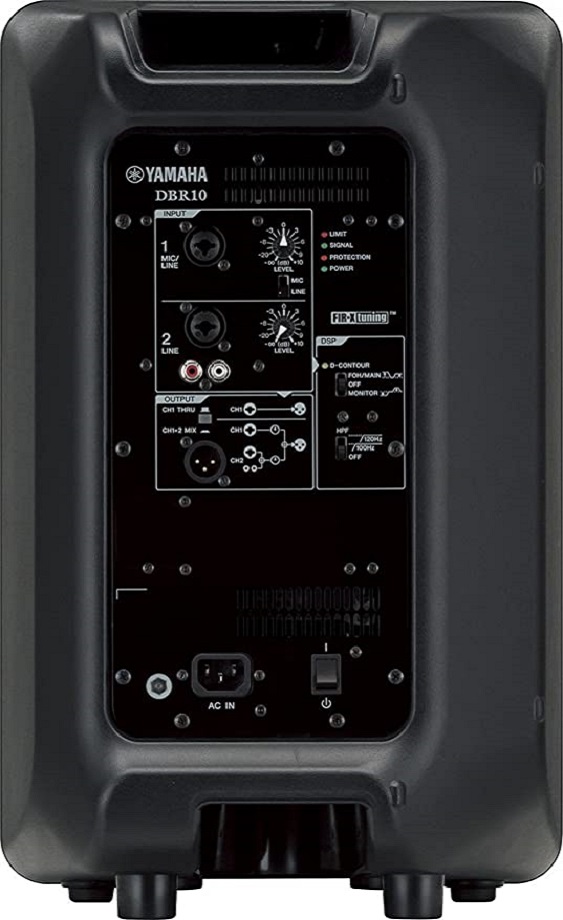

Easy to Use Onboard 2-Channel Mixer
DBR Series speakers have two input channels. CH1 has a combo jack which accepts both XLR and TRS Phone allowing for either Mic or Line level input signals. CH2 offers two input options, a combo jack that accepts XLR or TRS Phone, and an RCA pin jack for inout from CD players or other stereo line-level sources. The onboard mixer allows you to select either CH1+2 MIX to mix the signal of CH1 and CH2, or CH1 THRU to pass the signal from CH1 only.
FEATURES
- Speaker type: 2-way, Bi-amp powered speaker, Bass-reflex type
- Frequency range (-10dB): 55Hz – 20kHz
- Nominal coverage: H: 90°, V: 60°
- Components: LF: Diameter:10″ cone, Voice Coil:2″, Magnet:Ferrite, HF: Diaphragm:1″, Type: 1″ throat compression driver, Magnet:Ferrite
- Crossover: 2.1kHz: FIR-X tuning™ (linear phase FIR filter)
- Output power: Dynamic:700 W (LF: 500 W, HF: 200 W) / Continuous: 325 W (LF: 260 W, HF: 65 W)
- Maximum output level (1m; on axis): 129dB SPL
- I/O connectors: INPUT1: Combo x1, INPUT2: Combo x 1 + RCA pin x 2 (Unbalanced), OUTPUT: XLR3-32 x 1 (CH1 Parallel Through or CH1+CH2 Mix)
- Processors: D-CONTOUR: FOH/MAIN, MONITOR, OFF
- Heat dissipation: Fan cooling, 4 speeds
- Power requirements: 100 V, 100-120V, 220-240 V, 110/127/220V (Brazil), 50/60Hz
- Power consumption: 60W(1/8 Power Consumption), 18W(Idle)
- Cabinet material: Plastic
- Finish: Black
