Steinberg UR28M 6×4 USB Audio Interface

Description

Steinberg UR28M 6×4 USB Audio Interface Overview:

UR28M 6 X 4 USB AUDIO INTERFACE
If you are a musician, songwriter or working in a smaller space, the compact, user-friendly desktop format, flexible features and great sound quality of the UR28M audio interface make it your perfect production companion. Whatever style of music you are working in, the UR28M ensures your compact setup delivers a professional result.

Features

• Ultra-rugged build
• Latency-free monitoring with DSP effects
• High speed USB 2.0
• Class-A D-PRE mic preamps
• Compatible with all major audio software
• iOS ready via CC Mod
• Loopback function for streaming
• Monitor controls
• S/PDIF digital I/O
• 24-bit/96 kHz audio resolution

Your perfect production companion
Despite its compact size, the UR28M is a fully-featured, high-quality recording interface which will help you to produce superb results every time. It gives you enough inputs and outputs to connect to microphones, instruments, studio monitors and two independent sets of headphones, with digital I/O for professional equipment and even an extra two-track input for a reference source. High quality DSP-based effects let you add space and sparkle to your recordings, while the 3 x 3 monitor matrix lets you check your mixes on three different sets of monitors, making sure that your audience will always enjoy the best mix.

Record on the go and mix at home
If you want to record a solo performance, a duo or even a band in your rehearsal space, the compact and highly portable UR28M is ideal for use in rehearsal rooms and then taking the recording home to mix. As well as six channels of analog and digital inputs, including acclaimed D-PRE mic preamps, you can record in pristine quality on a computer, iPhone or iPad. Twin headphone sockets provide flexible monitoring while recording, then you can mix on Cubase AI, the Cubase LE app or other preferred DAW. Fast to set up and use, the UR28M will help you get great results every time.

Excellent for smaller studios and edit suites
Many songwriters, musicians, voiceover artists and audio editors do not have the luxury of working in a large studio space. Thanks to its flexible, high end features and great sound quality in a compact, desktop format, the UR28M is a solution for restricted spaces where a fast workflow and professional results are still the top priority. You can use the 3 x 3 speaker matrix to listen on up to three separate sets of monitor speakers, or use all six line outputs for 5.1 surround monitoring. With S/PDIF digital I/O, DSP-based effects and industry-leading D-PRE preamps, the UR28M ensures your compact setup always delivers a professional result.

Softwares

• Cubase AI
• Cubase LE
• dspMixFx Mixing Application

Specifications

• General
  • AD/DA: 24 bit
  • Maximum sample rate: 96 kHz
  • Dynamic range input: 101 [dB]
  • Connection Type: USB 2.0
• DSP-Features
  • Monitoring: Latency free monitoring with FX
  • True Integrated Monitoring with FX in Cubase
  • High-Pass filter
  • REV-X Reverb
  • Sweet Spot Morphing Channel Strip

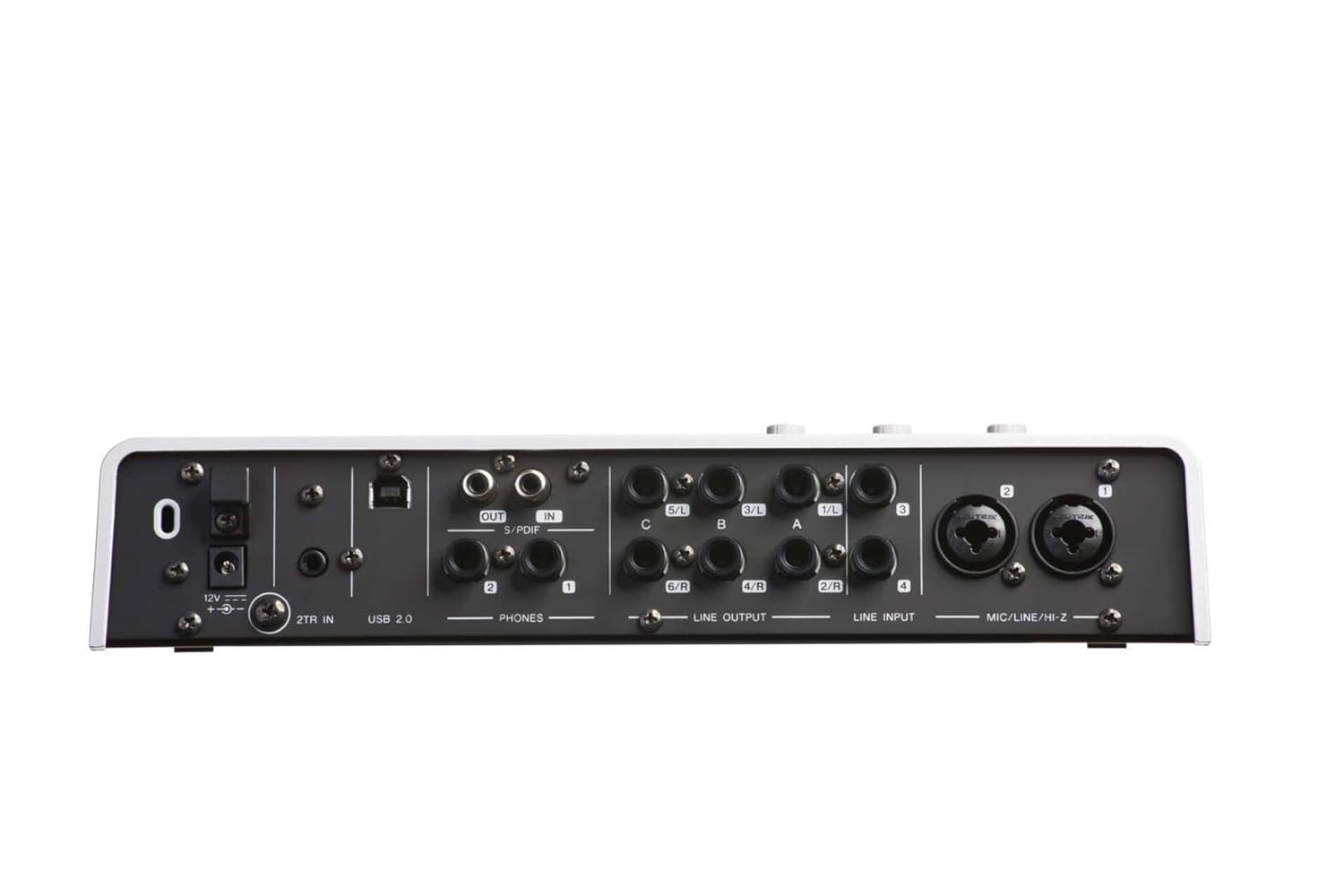

• Connectivity
  • Total number of inputs: 6
  • Total number of Outputs: 8
  • Microphone inputs: 2
  • Inputs with HI-Z: 2
  • Analog inputs TRS: 2
  • Analog inputs Combo: 2
  • Analog outputs TRS: 6
  • Phantom power: 2
  • Headphones outputs: 2
  • Digital In ADAT: 0
  • Digital Out ADAT: 0
  • Digital In S/PDIF Optical: 1
  • Digital Out S/PDIF Optical: 1
• System Requirements
  • Operating systems (Mac): macOS High Sierra, macOS Catalina, macOS Mojave, macOS Big Sur
  • Operating systems (Windows): Windows 7 (64-bit), Windows 8.1 (64-bit), Windows 10 (64-bit), Windows 11 (64-bit)
  • Operating systems (iOS): iOS 10, iOS 11, iOS 12, iOS 13, iOS 14
  • Apple silicon–based Mac: Rosetta 2 App
  • Port: USB 2.0, USB 3.0 (Tested with Intel USB 3.0 host controller)
  • CPU minimum (Windows): Intel Core i-series multicore processor 2 GHz or faster, or AMD equivalent processor
  • RAM minimum: 4 GB
  • Hard disk free space: 1200 MB
  • Display resolution recommended: 1280 x 800
  • Internet connection for: manuals and instructions, driver and tools, additional downloads, license activation, account sign up and product registration, installer download
• Dimensions
  • Width: 291 mm
  • Height: 59 mm
  • Depth: 164 mm
  • Weight: 1400 g
