Description

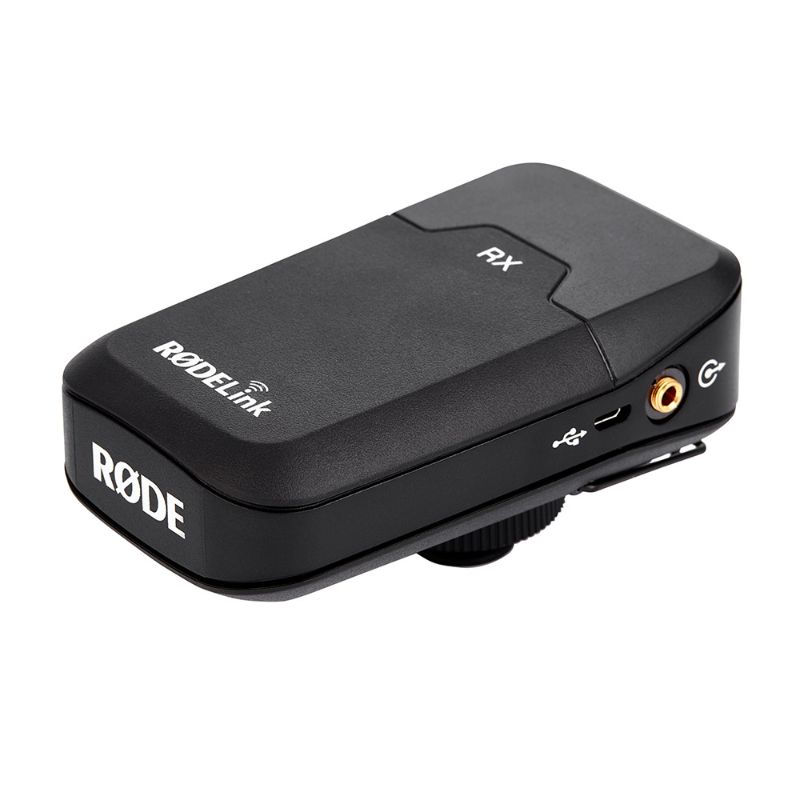

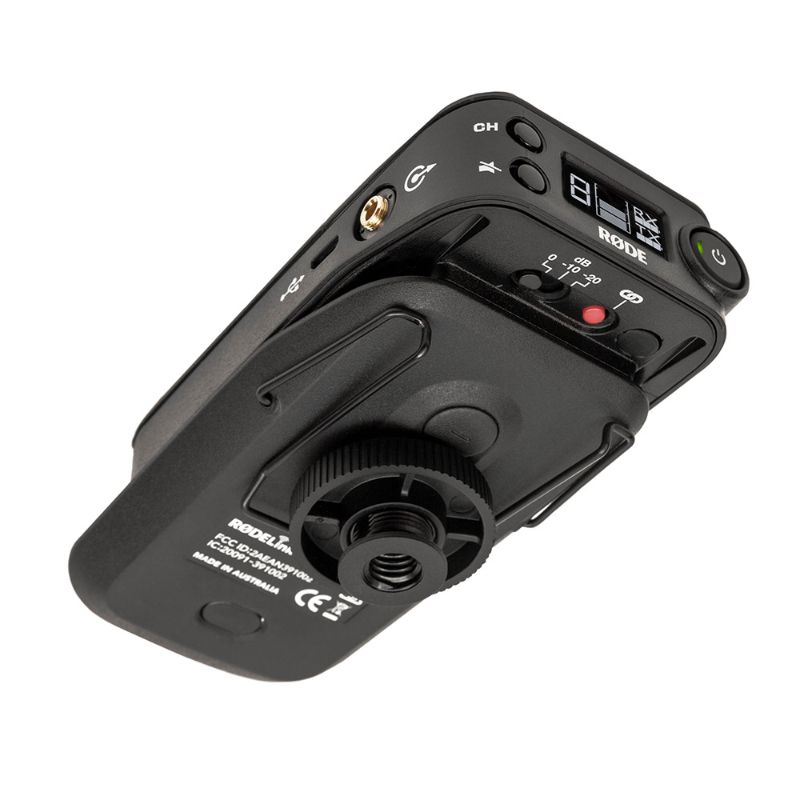

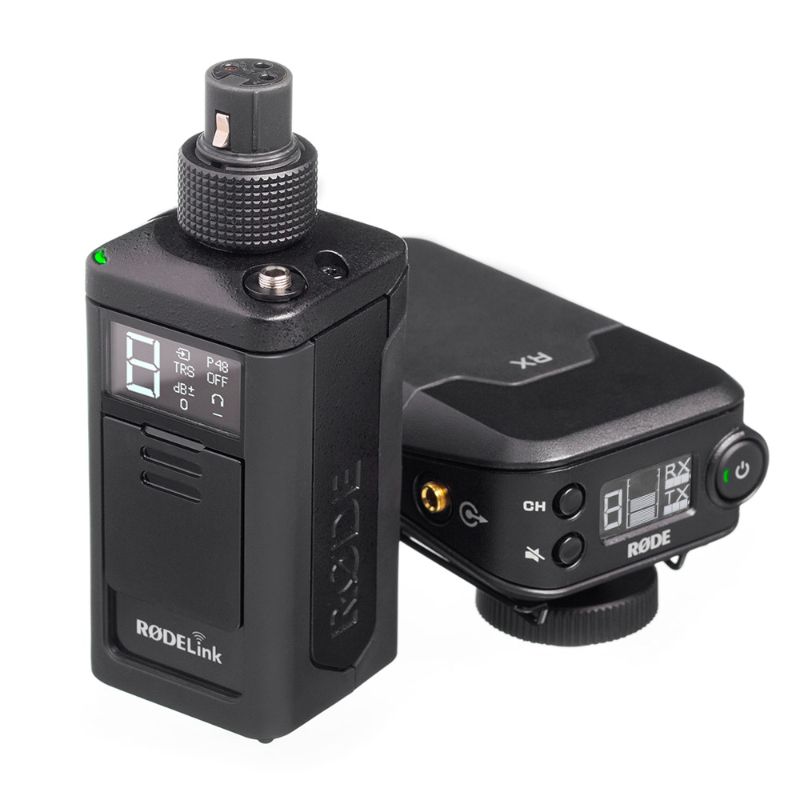

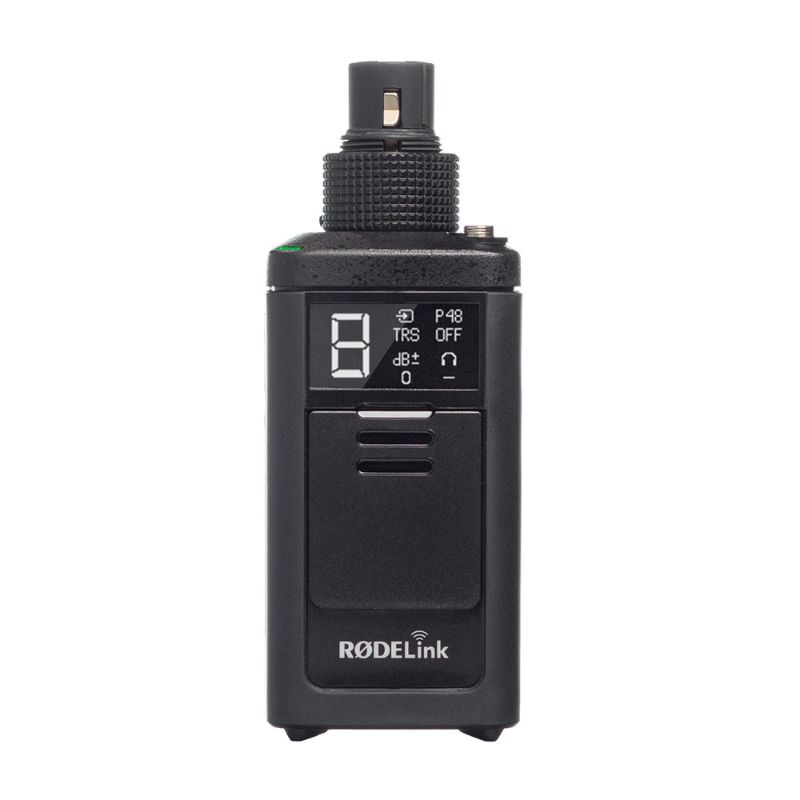

RØDELink represents the next generation of digital wireless systems. Using a Series II 2.4GHz digital transmission with 128-bit encryption, it is able to constantly monitor and hop between frequencies to maintain the strongest possible signal level at a range of up to 100 metres* (over 100 yards). The RØDELink Newsshooter Kit provides everything you need to start shooting video wirelessly with XLR microphones, including a camera-mounted receiver and an XLR transmitter. The receiver (RX-CAM) features an OLED display with information on level, battery status (receiver and transmitter), mute and channel selection. The unit can be mounted on a standard camera shoe mount, 3/8″ thread or belt-clip, and for added versatility the shoe mount can be located in one of two positions. The transmitter (TX-XLR) easily connects to handheld presentation microphones as well as shotgun microphones, with a 3.5mm input and headphone output.
* range estimations based on optimal environment
| Transmission type | 2.4GHz Fixed Frequency Agile System |
| System dynamic range | 112dB |
| Range (distance) | Up To 100m |
| Frequency range | 35Hz – 22kHz |
| Maximum output level | 1v Rms (2.8v P-p) |
| Max input signal level | 1v Rms (2.8v P-p) |
| Max latency | 4ms |
| Power source | 2 X AA Battery Or MicroUSB |
| Antenna | Internal |
| Output connection | 3.5mm TRS Locking Jack Socket – Dual Mono |
| Output impedance | 300Ω |
| Dimensions | 111mm X 65mm X 52mm |
| Weight | 190gm |
| Power source | 2 X AA Battery, Sony NP-F Battery Or MicroUSB |
| Antenna | Internal |
| Input connection | XLR With Locking Collar, 3.5mm TRS Locking Jack Socket |
| Input impedance | 1kΩ (XLR), 10kΩ (3.5mm) |
| Dimensions | 120mm X 45mm X 45mm |
| Weight | 222gm |
