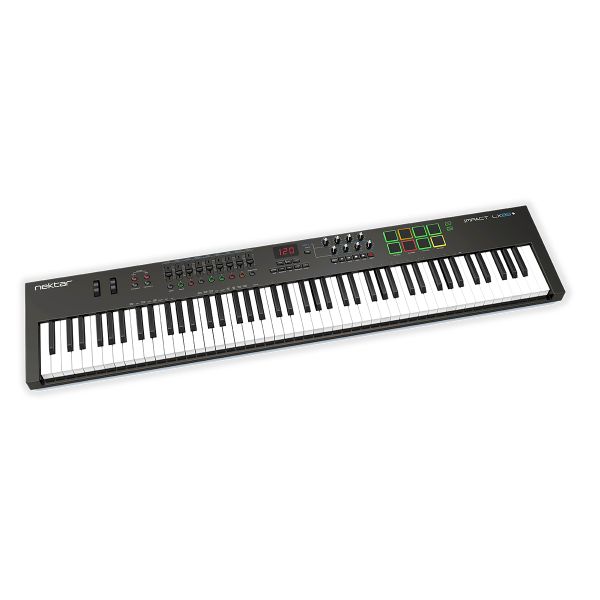

Nektar Impact LX+ 88

Description

The Impact LX88+ is a unique USB MIDI controller keyboard designed for keyboard players looking for extra reach. It’s jam-packed with intelligent, expressive performance control and hooks up automatically to your DAW! If you prefer to control MIDI hardware, use the build-in MIDI Out as well as the extensive MIDI programing options. Impact LX88+ does it all, and more.
Nektar DAW Integration custom designed for most of the popular DAWs, takes Impact LX88+ way beyond functionality normally offered by a MIDI controller keyboard. With Impact LX88+ the hard work is done, so you can focus on your creativity.

NEKTAR DAW INTEGRATION

Impact LX88+ software integration supports most of the popular DAWs. A common workflow gives access to many of the functions you are most likely to need when recording and performing with your Impact LX88+. The best part is that it’s all done for you: Simply complete the installation process and start making music! Impact LX88+ DAW integration currently supports Cubase, Digital Performer, FL Studio, Garageband, Logic, Nuendo, Reaper, Reason, Sonar and Studio One. Buttons and controls are labeled so you don’t have to remember how they are assigned. That’s why Impact LX88+ is a breeze to use but with enough extra features under the hood to challenge even the most experienced power user.

TRANSPORT & NAVIGATION

The 6 dedicated transport buttons are always within reach and mapped to control Cycle, Rewind, Forward, Stop, Play and Record. Press Shift to get access to alternate functions such as Goto L, Set L, Set R, Undo, Click and Mode. Dedicated Track up/down and Patch up/down buttons are located below the display.

MIXER

Press mixer and the first 8 Impact LX+ faders are assigned to control 8 channels of your DAWs mixer. The alternate Bank up/down function moves control assignments to the next or previous group of 8 channels. The 9th fader is assigned to the currently selected channel so you always know where to find it.

The buttons under the faders follow the channel assignment of their corresponding fader and can control Mute or Solo with LED’s clearly indicating current status. Pan for the group of 8 channels controlled by the faders is handled by the 8 pots. Fader 9 is used for control volume of the current mixer channel as well as master volume.

To help you get the best out of your screen real estate, Impact LX88+ also has shortcuts for opening and closing your DAWs mixer window so you can see what’s going on.

INSTRUMENT CONTROL

The Instrument button assigns all controls to instrument parameters once an instrument track is selected in your DAW. Nektar mapping ensures this is done automatically, so you can start tweaking immediately. Better still, many devices and plugins are pre-mapped to match the blue control labels on the Impact LX88+.

The Page Button
With Nektar DAW Integration, a page button allows you to switch between Default settings and User settings with LEDs clearly indicating which page is active. Each page changes assignments of the 8 pots, leaving the User page for example for your own assignments. Many pre-mapped plugins take advantage of the two pages*. So you could use it for immediate access to both, oscillator 1 and oscillator 2 parameters from the pots, switching between oscillators using the Page button.

In addition, a typical control layout places amp and filter ADSR envelopes on the faders for instant access regardless of whether the Default or User page is selected.

“Grab” and Nektar Maps
The Nektar “Grab” mode allow you to temporarily assign parameters to controls as you work on your project. It’s as easy as holding down shift while moving the parameters on the instrument you want to control followed by moving the controls on Impact LX88+ you want them assigned to. Some DAWs even supports saving “grabbed” parameters to a Nektar map* which means you can completely customize your assignments for future use.

USER PRESETS & PROGRAMMING MIDI

If you mainly want to use your DAW’s MIDI learn features, Impact LX88+ is easy to come to grips with.
There are 2 non-overlapping, read-only presets on the Mixer and Instrument buttons so you can quickly switch between independent and unique setups. These presets are also used for Impact LX88+’s integrated DAW support.

In addition, 5 user presets are programmed for GM compatible and “learn-friendly” setups plus they can of course be overwritten with your own settings. You for example could set up Impact LX88+ for use with Pro Tools or Ableton Live, both of which have limited integration options. Using Impact LX8+”s generic MIDI controller capabilities, setups can get you quite far. Here are links to setup examples.
With the Impact LX88+’s “Null” function switched to on, parameter values are stored when you switch between presets so you avoid parameter jumping.

CONNECTIVITY & APPLE iOS

On the back of Impact LX88+ are the connection points including:

•         USB port for power and data connection to your computer or iPad (via optional USB camera connection kit)
•         Foot switch jack, assignable (pedal not included)
•         MIDI Output. Can be routed individually for zones, from your DAW or directly from the LX88+
•         On/off switch
•         Power Supply socket: 9v 600mA, center positive, 2.1mm barrel connector, (PSU not included)

As a low powered USB device, Impact LX88+ works with all USB devices that feature a Class compliant MIDI driver. This includes all version of Windows from XP and higher, Apple OS X 10.5 and higher plus Linux (as long as a USB MIDI driver package is installed).

And if you are often on the move you can easily hook your Impact LX88+ keyboard to an Apple iPad using the iPad’s optional USB camera connection kit (optional). Of course the Impact LX is powered by the iPad so you can work away for as long as your iPad remains charged.

BITWIG 8-TRACK INCLUDED

Bitwig 8-Track is included with every Impact LX+ so you can start producing, performing, and designing sounds like a pro from day one. Bitwig 8-Track gives you access to over 50 software instruments and effects for use on up to 8 audio or MIDI project tracks, and you can use any 3rd party VST plug-ins you might own, too. The ‘Bitwig Essentials Package’, a highly versatile handpicked selection of loops, clips and samples, is also included to help you get started. So put all that together and you have a powerful sketchpad for your musical ideas featuring the acclaimed workflow of Bitwig Studio.

Nektar DAW Integration supports Bitwig 8-Track, so using Nektar Impact LX+ and Bitwig 8-Track together is a fantastic combination. If you are just starting out, you will find it’s the perfect way to take your first steps in the world of digital music creation. And if you’re already familiar with using computer software, then you’ll be amazed at what this combination has to offer!

Specifications:
Keyboard

• 88 note, velocity-sensitive semi-weighted keyboard
• 4 velocity curves + 3 fixed
• Pitch bend & Modulation wheels
• Transpose shift buttons

Controls

• 8 potentiometers
• 9 30mm faders
• 9 assignable buttons
• 6 dedicated transport buttons
• 5 preset locations store control settings
• Page button (for Nektar DAW Integration only)
• Nektar DAW Integration  for major DAWs

Pads

•  8 velocity sensitive pads
• Each pad LED illuminated with 4 color options: Green, Yellow, Orange and Red
• 4 velocity curves plus 3 fixed
• Note-learn
• Pads assignable notes and  MIDI cc messages
• Load or Save to any of 4 pad maps
• Clips and Scenes LED buttons

Connections

• 1/4” TS jack foot switch input (MIDI Assignable)
• MIDI Out (can be routed from LX88 or from DAW)
• USB port on rear panel, and USB bus powered
• Connects to iPad via Apple Camera  Connection Kit (not supplied)
• Power supply socket (PSU optional) 9v 600mA, center positive,  2.1mm barrel connector

Weight & Dimensions

• Dimensions: 50.25″ (L) x 11″ (W) x 3.5″ (H)
• Weight: 18 Lbs

System Requirements

• USB Class compliant, no driver is needed for:
• Apple iOS, Apple OSX, Windows XP, or higher, Linux (MIDI driver software required)

Nektar DAW Integration

• Mac OS X 10.7 or higher
• Windows Vista, 7 & 8 or higher
