Description
NEW LOOK. SAME FLOW.

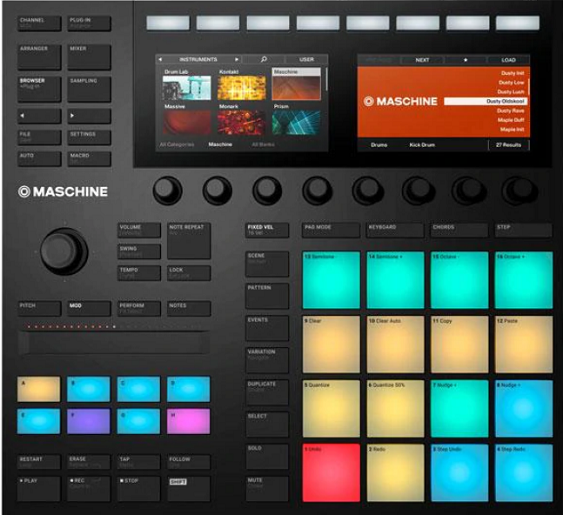

The new MASCHINE takes our classic groovebox workflow and makes it faster and more intuitive. Optimized based on customer research, it’s packed with new features to boost your speed and increase your focus all without breaking the workflow you love.
BIGGER PADS
Big, bold, and in your face, the larger pads create more room for complex moves like flams and rolls. New technological updates make the pads more sensitive to lighter touches, for more expressive playing. And since the center-to-center distance is exactly the same, your muscle memory and workflow don’t have to change.
FULL COLOR, HI-RES SCREENS
With two full-color displays and the four-directional push encoder, you can browse sounds, FXs, plug-ins, and instruments with a tactile, one-handed, completely visual workflow – simply find the thumbnail and load directly from the hardware. Plus, the high-res screens let you get more precise with your mixing, see an overview of your arrangement, or zoom in on waveforms to slice samples like a surgeon.
STUDIO-GRADE AUDIO INTERFACE
MASCHINE now comes with a studio-grade, 96kHz / 24-bit audio interface for pristine sound. Simply patch in a synth or add a dynamic mic for quick recording and sampling. Stereo line and MIDI ports make it a perfect centerpiece for any studio. Plus, it’s USB-powered, so you can record anywhere with your laptop – or plug in the included power supply unit for brighter pads.
FASTER WORKFLOW
The new hardware layout cuts through the clutter to help you stay focused and get your ideas out fast. Instead of being hidden behind a shift-function button, some of the most-used features and functions can now be accessed directly with one touch.
PAD INPUT MODE BUTTONS
Drum rhythms, program patterns, or play melodies and chords, switching easily with the click of a button.
LOCK BUTTON
Take parameter snapshots, tweak settings, and return back to the original settings to discover new transitions.
MACRO BUTTON
Simply touch a knob to assign your favorite parameters to macros and start tweaking.
NOTE REPEAT BUTTON
Play fills and arps during a performance with a larger, easier-to-find button.
UPDATED TRANSPORT SECTION
Transport buttons now include deeper integration with most DAWs and direct access to Follow and Tempo Tap.
FIXED VELOCITY BUTTON
Program accents and ghost notes quickly with 16 fixed velocity levels or get a smooth, constant volume when triggering samples.
UPDATED FILE MANAGEMENT
Open a recent project, make changes, and save it as a new file without ever touching the mouse with new Save and Open buttons.
EXPANDED CONTROL SECTION
Quickly jump between views with one-touch access to the Arranger, Mixer, Sound Browser or Sampler.
8 TOUCH SENSITIVE KNOBS
Go beyond tweaking with eight touch sensitive knobs. Touch once to activate special contextual menus, such as tag clouds, sound settings, and FX parameters. You can also map your most frequently used FX, instruments, or plug-in parameters to macros with the touch of a button.
SMART STRIP FOR NEW WAYS TO PLAY
The Smart Strip opens up MASCHINE to whole new ways of playing. Use it like a keyboard wheel to pitch-bend and modulate sounds. Add new sonic textures, builds, or transitions with advanced performance FX like stutter and scratch. Or strum samples, synths, and drums like a guitar.
LATEST SOFTWARE UPDATES
In case you missed the recent MASCHINE software updates, here are some of our favorite features.
IDEAS VIEW
With MASCHINE 2.6.5, Ideas view was added to make sketching and arranging tracks more intuitive. Record alternate musical phrases or play different beats nonstop. Then mix and match until you find a groove you like.
PARAMETER SNAPSHOT MORPHING
Lock lets you freeze your current settings, tweak a sound, change an envelope, and return back to your initial settings at the press of a button. Combine it with the new Morph function to discover new transitions or add improvisation during a performance.
VARIATION ENGINE
The new Variation Engine is perfect for adding texture to a track or sparking new ideas. Use Randomize to create new patterns and melodies on the fly. Or add a little swing to your drums with Humanize.
ALSO NEW IN MASCHINE 2.4.6
- Export audio in AIFF format
- Scene Export: Split by Scenes lets you export individual scenes for use as audio loops
- Automatically export the entire song range without setting a loop range first
- Eraser Tool now deletes a divider between slices instead of merging two slices
- Browse by product group (category /vendor) via MASCHINE STUDIO
- Remove all slices at once directly from the MASCHINE hardware to start again from scratch
- Directly access audio and MIDI settings from the regular preferences dialog
- “Pattern Grid” renamed to “Arrange Grid” and moved below the Group List in the software
- In the Slicer, “Manual” mode is now the default
- Added a field in preferences for custom names for export
- “Slice” Button renamed to “Split” and turns into “Slice” when a slice is played back
- Added a Loop control to the Transport in the software to enable and disable Loop playback
- Browse directly from KOMPLETE KONTROL S-Series keyboard using the new Hardware Browse mode
SYSTEM REQUIREMENTS
- Mac OS X 10.11 or macOS 10.12 (latest update), Intel Core i5, 2 GB RAM (4 GB recommended)
- Windows 7, 8, or 10 (latest Service Pack, 32/64-bit), Intel Core i5 or equivalent CPU, 2 GB RAM (4 GB recommended)
Additional Requirements
- USB 2.0 Port, 9 GB free disk space for MASCHINE software and MASCHINE Library, 18 GB free disk space for KOMPLETE 11 SELECT
- An Internet connection and a graphics card which supports OpenGL 2.1 or higher are required to download and activate MASCHINE software. Once installed and activated, all products can be used offline.
ADDITIONAL INFO
- Supported Interfaces: Stand-alone, VST, Audio Units, AAX 32 and AAX 64, ASIO, CoreAudio, WASAPI
- Please note: Native 64-bit support for stand-alone and plug-in versions.
- MASCHINE requires activation: Activate using the serial number on the flyer inside the box.
- In case of graphics issues, please install the latest drivers for your GPU. This can be necessary even if Windows reports them as up to date.
- MASCHINE software, MASCHINE Factory Library, and KOMPLETE 11 SELECT are provided as downloads after registration — an Internet connection and a graphics card which supports OpenGL 2.1 or higher are required to download and activate the software. Once installed and activated, all products can be used offline.
FEATURES AND SPECIFICATIONS
- Integrated hardware/software system includes sampler, arranger, mixer, sound library, FX, and more
- 8 GB MASCHINE library with samples, one-shots, sliced loops, sampled instruments, drums synths, presets, patterns, drum kits, and songs
- Includes 25 GB KOMPLETE 11 SELECT library
- 25 pro-quality studio and creative FX including filter, EQ, delay, reverb and compressor
- 2 high-resolution RGB color displays for precision sample slicing, sound tweaking, note editing, mixing, browsing, and more
- 16 large, ultra-sensitive pads make two-handed drumming easy
- Pro-grade, 96 kHz / 24-bit audio interface with 2 x ¼” TRS line outputs, 2 x ¼” TRS line inputs, ¼” dynamic mic input, stereo headphone output, 1 x MIDI In, 1 x MIDI out; 1 x Footswitch
- 8 touch sensitive knobs for parameter tweaking
- Smart Strip for strumming notes, pitch bending sounds, performing with FX, and more
- Four-directional push encoder for browsing, navigating, adjusting levels and balance
- Powered via USB 2.0 or with the included 15V 1.2A power supply unit
- Seamless integration with KOMPLETE, NKS-ready instruments, MASCHINE Expansions, and the new KOMPLETE KONTROL S49/S61 Keyboards
- Classic groovebox features including 16 velocity levels, swing, pad link, note repeat, step sequencer, and vintage MPC 60/SP 1200 sampling emulation
- Compatible with all major DAWs (including Ableton Live, Logic Pro, Cubase, GarageBand, FL Studio, Avid Pro Tools, PreSonus Studio One, and more) as a VST, Audio Units, or AAX 32 and AAX 64 plug-in with full multi-core support
AUDIO INTERFACE SPECIFICATIONS
All results measured in accordance with the Audio Engineering Society’s AES17 standards.
Line-In
Full Scale Level: +18,6 dBu
Dynamic Range: 100 dB
THD+N: 0.003 %
Frequency Response: 20Hz-20kHz +/- 0.1 dB
Crosstalk L/R: -96 dB
Mic Input (max gain)
Full Scale Level: -32 dBu
Dynamic Range: 90 dB
THD+N: 0.01 %
Frequency Response: 20Hz-20kHz +/- 0.4 dB
Mic Input (min gain)
Full Scale Level: -3.4 dBu
Dynamic Range: 102 dB
THD+N: 0.004 %
Frequency Response: 20Hz-20kHz +/- 0.15 dB
Line Out
Maximum Output Level: +18.0 dB
Dynamic Range: 102 dB
THD+N: 0.003 %
Frequency Response: 20Hz-20kHz +/- 0.5 dB
Crosstalk L/R: -100 dB
Headphone Out
Maximum Output Level: 29.4 mW @ 33 Ohm load
Dynamic Range: 102 dB
THD+N: 0.007 %
Frequency Response: 20Hz-20kHz +/- 0.35 dB
Crosstalk L/R: -60 dB
