Description

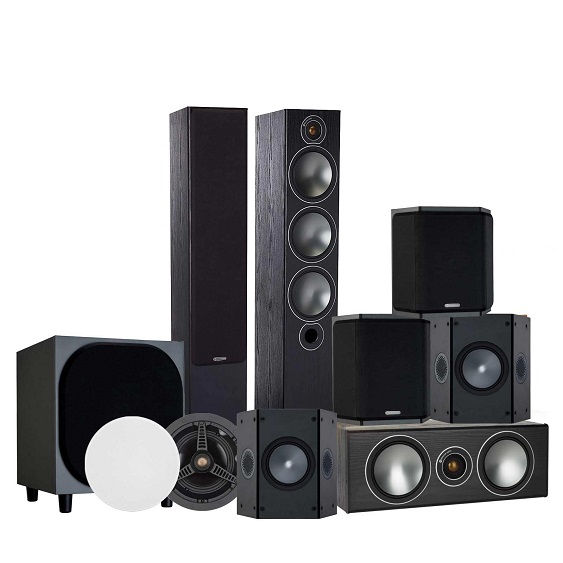

Package Includes:
- Monitor Audio Bronze 6 Floorstanding Speaker x 1 pair
- Monitor Audio Bronze Centre Speaker x 1 Unit
- Monitor Audio Bronze FX Surround Speaker x 2 Pair
- Monitor Audio C165 In-Ceiling Speaker x 2 units for Atmos
- Monitor Audio Bronze W10 Subwoofer x 1 unit
Key Features:
- Audiophile-grade floorstanding speakers from Monitor Audio
- Features 1 x 6.5″ mid driver, 2 x 6.5” bass drivers and a 1” Gold Dome tweeter with C-CAM technology
- Single bolt-through driver systems for increased cabinet rigidity & driver/baffle de-coupling
- High-quality crossovers with premium grade Polypropylene film capacitors
- Discreet design with flush wall placement and with recessed terminations
- Sealed cabinet for accurate performance when installed in cabinet, restricted voids or close to a wall
- frequency response: 60-25,000 Hz
- sensitivity: 88.5 dB
- 10″ (250 mm) flat panel Auxiliary Bass Radiator (ABR) positioned underneath the unit
- Class D amplifier with high current Switch Mode Power Supply (SMPSU)
Benefits of Monitor Audio 7.1.2 Bronze Series Home Theater Speaker Package
Features speaker technology from the premium series
The Bronze 6 features design features and technologies from Monitor Audio’s higher-end Silver and Gold speaker series. This brings a superior performance and incredible value for money. Each Bronze 6 speaker sports a 1″ Gold dome tweeter for crisp a high-frequency reproduction, 1 x 6.5″ mid driver for smooth midrange, and 2 x 6.5” bass drivers for a punchy low-frequency response. The speakers also use the same bolt-through driver attachment mechanism found in the Silver and Gold speaker series.
Timbre-matched with Bronze series speakers
Timbre-matched with Monitor Audio Bronze series, you can use the Bronze 6 floorstanding speaker for a stereo vinyl setup or part of a multi-channel surround system by pairing with other speakers from the series. Brace yourself for an award-winning sonic performance with powerful bass in your music, movies, TV shows, and gaming sessions.
Borrows speaker technology from the premium series
The Bronze center channel speaker borrows design features and technologies from Monitor’s higher-end Silver and Gold speaker series. This delivers a superior performance and incredible value for money. Each speaker sports a 1″ Gold dome tweeter for a clear high-frequency response and dual 5.5″ midbass drivers for smooth midrange and to create lifelike dialogue and sound effects. They also use the same bolt-through driver attachment mechanism as the Silver and Gold speaker series.
Optimised for home cinema
Using the traditional twin-woofer arrangement with tailored frequency response, the Bronze Centre offers a broad spread of sound that can easily bridge the gap between widely spaced floorstanding speakers – even speakers as large as the Monitor Audio Bronze 6 speaker.
Optimised for Home Cinema. Di-pole or Bi-pole; the Choice is Yours.
Isn’t it marvellous when a speaker is so flexible, you can optimize it how you want? That’s exactly what the FX Surround Speaker does! It features two tweeters and a single woofer unit in a slim cabinet (which is wall mountable, by the way!). Just by flicking a switch, you can change the sound characteristics from di-pole (diffused) to bi-pole (direct) for the exact type of surround sound you require.
Solid midrange and bass
This speaker uses a 6-1/2 MMP® II (Metal Matrix Polymer) woofer for textured, accurate midrange and punchy bass. An advanced crossover network helps ensure smooth, full-range sound throughout the speaker’s frequency range.
Two-Way Driver Design
The Monitor Audio C165 in-ceiling speaker utilizes a two-way driver design, featuring a pivoting 1″ C-CAM Gold Dome tweeter and a proprietary 6.5″ MMP II woofer. Engineered for excellent detail resolution and full-range sound, the C165 will deliver great sound for distributed audio, home theater, and stereo applications.
Stylish Design, Available in a choice of Finishes
This speaker will stun you with its sound quality and its bold design. Solidly built and wrapped in a choice of premium quality vinyl veneers, the FX features finishes of black, white and walnut that will perfectly blend with your decor. Easy to install, the Bronze FX speakers can be wall mounted.
Monitor Audio Bronze Centre Specifications | |
---|---|
Frequency Response
(-6dB – IEC 268-13)
|
60 Hz – 30 kHz |
Sensitivity (1W@1M) | 90 dB |
Maximum S.P.L. (1dBA @ 1m – each) | 113.8 dBA |
Nominal Impedance |
8Ω
|
Power Handling – R.M.S. | 120 W |
Recommended Amp Requirements | 20 – 120 W |
Cabinet Design | Sealed Cabinet |
Drive Unit Complement | 2 x 51/2” C-CAM bass / mid driver, 1 x 25 mm gold dome C-CAM tweeter |
Crossover Frequency | 3.0 kHz |
Complete Dimensions inc grille, terminals, plinths & spikes (H x W x D) | 165 x 460 x 193 mm (6½ x 18⅛ x 7⅝”) |
Weight | 5.6 kg |
Monitor Audio Bronze 6 Specifications | |
---|---|
Frequency Response
(-6dB – IEC 268-13)
|
34 Hz – 30 kHz |
Sensitivity (1W@1M) | 90 dB |
Maximum S.P.L. (1dBA @ 1m – each) | 114.8 dBA (pair) |
Nominal Impedance |
8Ω
|
Power Handling – R.M.S. | 150 W |
Recommended Amp Requirements | 40 – 150 W |
Cabinet Design | Bass section – Front/rear bass re ex with HiVe II |
Drive Unit Complement | 2 x 6.5” C-CAM bass driver, 1 x 61/2” C-CAM mid-range, 1×25 mm gold dome C-CAM tweeter |
Crossover Frequency | LF: -6 dB @ 150 Hz MF/HF: 2.5 kHz |
Complete Dimensions inc grille, terminals, plinths & spikes (H x W x D) | 1033 x 235 x 350 mm (40⅝ x 9¼ x 13¾”) |
Weight | 16.6 kg |
Monitor Audio Bronze FX Specifications
|
|
---|---|
Frequency Response
(-6dB – IEC 268-13)
|
60 Hz – 35 kHz
|
Sensitivity (1W@1M) |
87 dB
|
Maximum S.P.L. (1dBA @ 1m – each) | 113 dBA |
Nominal Impedance | 8Ω |
Power Handling – R.M.S. | 85 W |
Recommended Amp Requirements |
30 – 85 W
|
Cabinet Design |
Sealed Cabinet
|
Drive Unit Complement |
1 x 6″ C-CAM RST bass/mid driver
2 x 1″ (25 mm) C-CAM Gold Dome tweeter
|
Crossover Frequency |
2.5 kHz
|
Complete Dimensions inc grille, terminals, plinths & spikes (H x W x D) | 250 x 310 x 130 mm (913/16 x 123/16 x 51/8″) |
Weight | 4.3 kg |
Monitor Audio C165 In-Ceiling Speaker Specifications
|
|
---|---|
Frequency Response
|
60 Hz – 25 kHz
|
Nominal Impedance
|
6 ohms |
Sensitivity (1W@1M)
|
88.5 dB |
Maximum SPL
|
107.4 dBA |
Power Handling (RMS)
|
65 W |
Recommended Amplifier Requirements
|
20 – 65 W |
Drive Unit Complement
|
6 1/2″ MMP II cone bass driver
1″ C-CAM pivoting Gold Dome tweeter
|
Overall Diameter (Including Grille)
|
250 mm (913/16″) |
Overall Depth (Including Grille)
|
120 mm (43/4″) |
Mounting Depth
|
116 mm (49/16″) |
Fixing Type
|
3 position Tri-Grip dog fixings |
Weight
|
1.92 kg |
Monitor Audio Bronze W10 Subwoofer Specifications | |
---|---|
System Format
|
Long-throw 10″ driver featuring ‘dished’ C-CAM cone. 10″ flat panel ABR (Auxiliary Bass Radiator).
18 mm M.D.F. internally braced construction
|
Lower Frequency Limit | -3 dB @ 33 Hz / -10 dB @ 28 Hz (Free Field) Default preset: Music, -3 dB @ 29 Hz / -10 dB @ 25 Hz (In Room) |
Upper Frequency Limit
|
-6 dB @ 150 Hz |
Drive Unit Complement | 1 x 250 mm (10″) C-CAM subwoofer driver |
Linear Driver Excursion
|
17 mm peak to peak |
Amplifier Output | 220 W |
Amplifier Classification | Class D with high current Switch mode power supply (SMPSU) |
Phase Control
|
0 Degrees & 180 Degree pure Invert |
Low Pass Filter Alignment | 4th order (24 dB/Octave), from 50 Hz to 120 Hz |
Equalisation DSP | 3 pre-set modes: Music, Movie, Impact |
Auto Sensing | Line Level >3mV. Auto Standby feature after 20 mins |
Audio Input/Outputs
|
LFE unbalanced input RCA
Stereo unbalanced inputs RCA
|
Input Impedance | 20 kOhms input impedance |
Main Inputs Voltage
|
100 – 120 Vac 50 – 60 Hz / 220 – 240 Vac 50 – 60 Hz (Manually selected) |
Power Consumption
|
Maximum 300 W, Standby <0.5 W (ErP compliance) |
External Dimensions (Including Amp, Drivers and Terminals (H x W x D))
|
321 x 321 x 364 mm
(125/8 x 125/8 x 145/16″)
|
External Dimensions (Including Amp, Drivers, Terminals and Feet (H x W x D))
|
366.5 x 321 x 364 mm
(147/16 x 125/8 x 145/16″)
|
Weight (each)
|
13.4 kg |
Warranty | |
---|---|
Warranty Type | Manufacturers |
Warranty Period | 1 Year |
