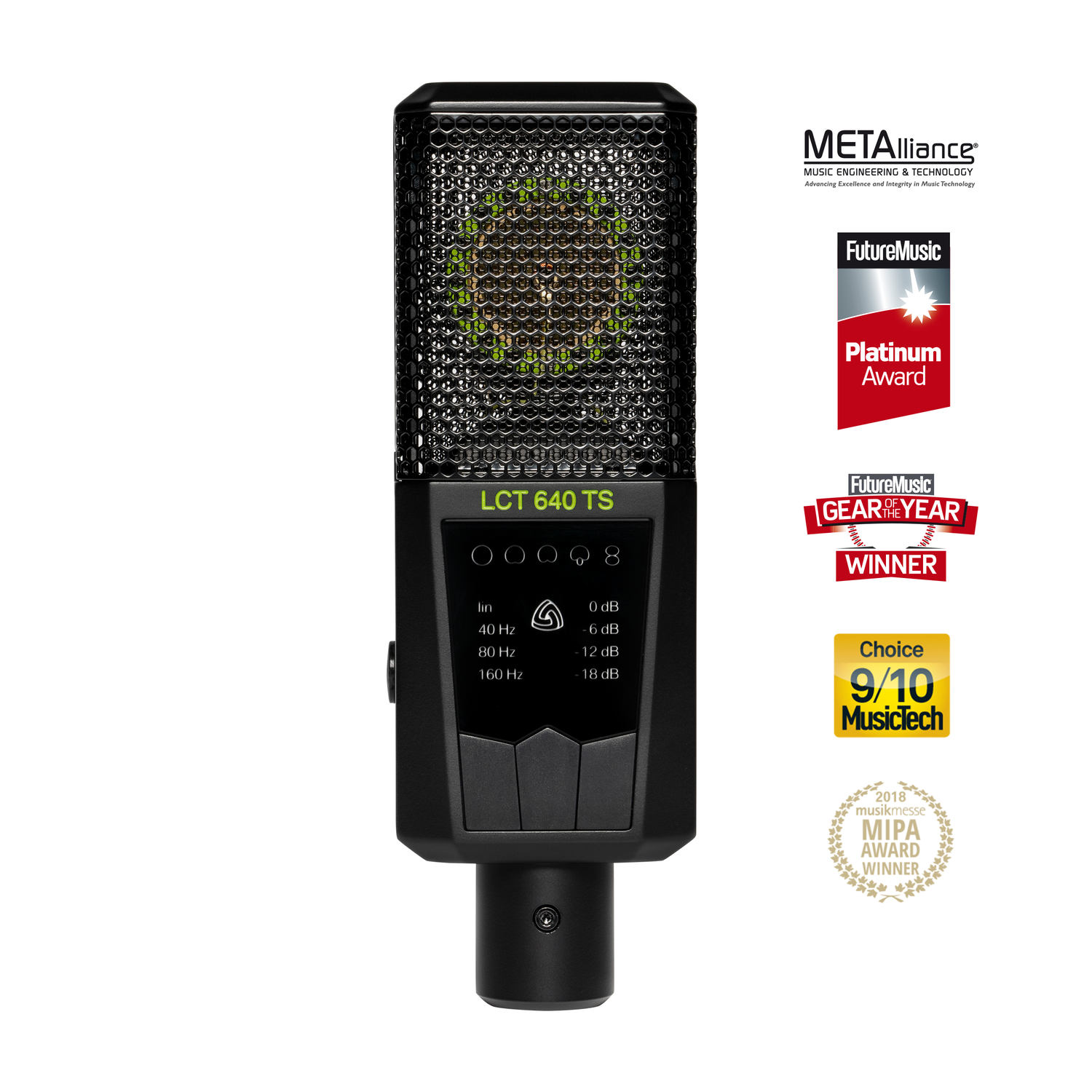

A TRUE NEXT-GEN STUDIO MICROPHONE
Freely change the polar pattern in postproduction
Designed and engineered in Austria, the LCT 640 TS will revolutionize the way we think about the recording process. Since the signal of the front and back diaphragm is provided by independent circuitries, any kind of polar pattern can be realized dynamically – even after the recording.
Revolutionary Dual Output Mode
The LCT 640 TS provides the signal of the front and the back diaphragm of the capsule separately. In addition to your standard XLR cable plug in the included adapter cable and experience all the possibilities of this true next-gen microphone. Use both outputs to capture the whole session instead of committing to a single source.
Change the material you have already recorded dynamically by adjusting the polar pattern, add or subtract room, and even turn your microphone by 180°.
POLARIZER plug-in
Change pattern in your DAW
​After recording with the LCT 640 TS, use our plug-in to change the pattern. Jump back and tweak your material.
Standard Multi-Pattern Mode
Plug in one 3-pin XLR and you have a large diaphragm multi-pattern condenser mic featuring the following polar patterns: omni, wide cardioid, cardioid, supercardioid and figure-8
Magnetic Pop Filter
Hides nothing, captures everything – except plosives and hisses.
This efficient magnetic pop filter will effectively reduce pops and hisses without covering 2/3rds of your vocal artist’s face. The most subtle and convenient way of getting the most out of every single recording.
MS Stereo with one LCT 640 TS?
Definitely!
Usually, mid side stereophony can only be done with two microphones. But now, it is way easier to use one LCT 640 TS. Just point the side of the microphone to the signal source and record both outputs on a stereo track in your DAW. Change the panorama for both signals to adjust the stereo width.
Perfect Match technology
The future of stereo recording
Any two LCT 640 TS will always form a matched pair. Add another one and you will get a “matched triplet”, and so on. Every single LCT 640 TS undergoes a series of measurements followed by adjustment of the polarization voltage to achieve exactly the same sensitivity in every microphone.
Clipping History
Innovative features make life easier
It is easily possible to miss if clipping occurred during the recording. Clipping History lets you know if the microphone clipped since it was last turned on.
Low-cut and attenuation
Adapt to every situation
Low-cut: linear, 40 Hz, 80 Hz, 160 Hz
Attenuation: 0 dB, -6 dB, -12 dB, -18 dB
Specifications:
- Includes:
- Protective case
- LCT 40 Wx
- LCT 40 SHx
- LCT 50 PSx
- LCT 40 TS
- DTP 40 Lb
- Acoustical operating principle: Pressure gradient transducer, externally polarized
- Diaphragm: 3 micron gold sputtered Mylar
- Transducer Ø: 25.4 mm, 1 in
- Polar pattern (Dual Output Mode): Create any polar pattern in post-production
- Polar pattern (Multi-Pattern Mode): omni, wide cardioid, cardioid, supercardioid, figure-8
- Sensitivity:
- 31.4 mV / Pa (-30.1 dBV), cardioid
- 30.3 mV / Pa (-30.3 dBV), omni
- 34.1 mV / Pa (-29.4 dBV), figure-8
- Signal / noise ratio: 83.5 dB (A)
- Equivalent noise level: 10.5 dB (A), cardioid
- Dynamic range: 123.3 dB (A)
- Max. SPL for 0.5 % THD: 133.8 dBSPL, 0 dB pre-attenuation
- Pre-attenuation pad:
- 0 dB
- -6 dB
- -12 dB
- -18 dB
- Low-cut filter
- linear
- 40 Hz (12 dB/oct)
- 80 Hz (12 dB/oct)
- 160 Hz (6 dB/oct)
- Internal impedance: 110 Ω
- Rated load impedance: 1,000 Ω
- Supply voltage: 48 V +/- 4 V
- Current consumption: 5.1 mA
- Mic enclosure: Zinc die cast
- Connector: Gold plated 3-pin XLR + Mini 3-pin XLR
- Microphone dimensions: 158 x 52 x 36 mm (6.22 x 2.04 x 1.42 in)
- Microphone net weight: 425 g / 14.9 oz
