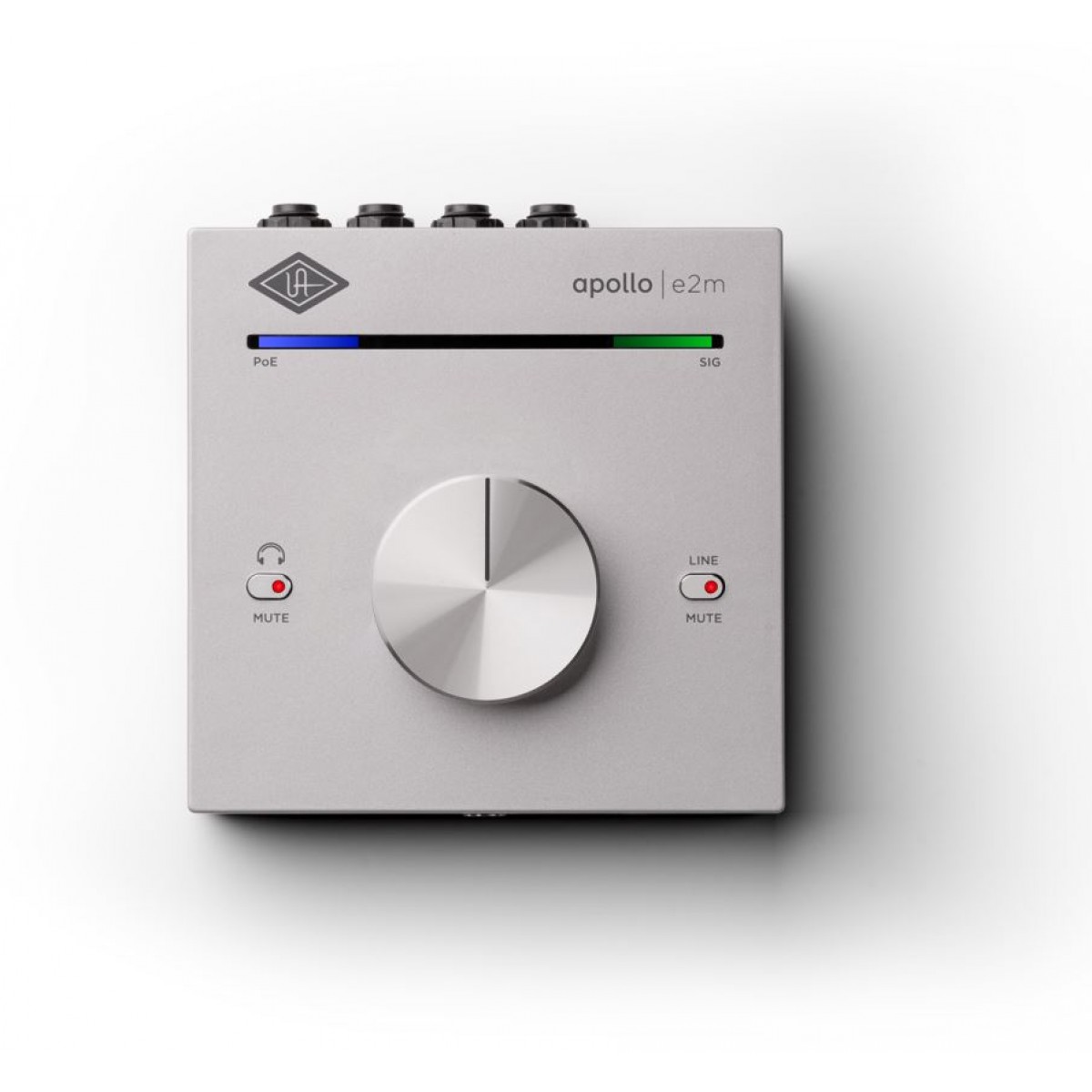

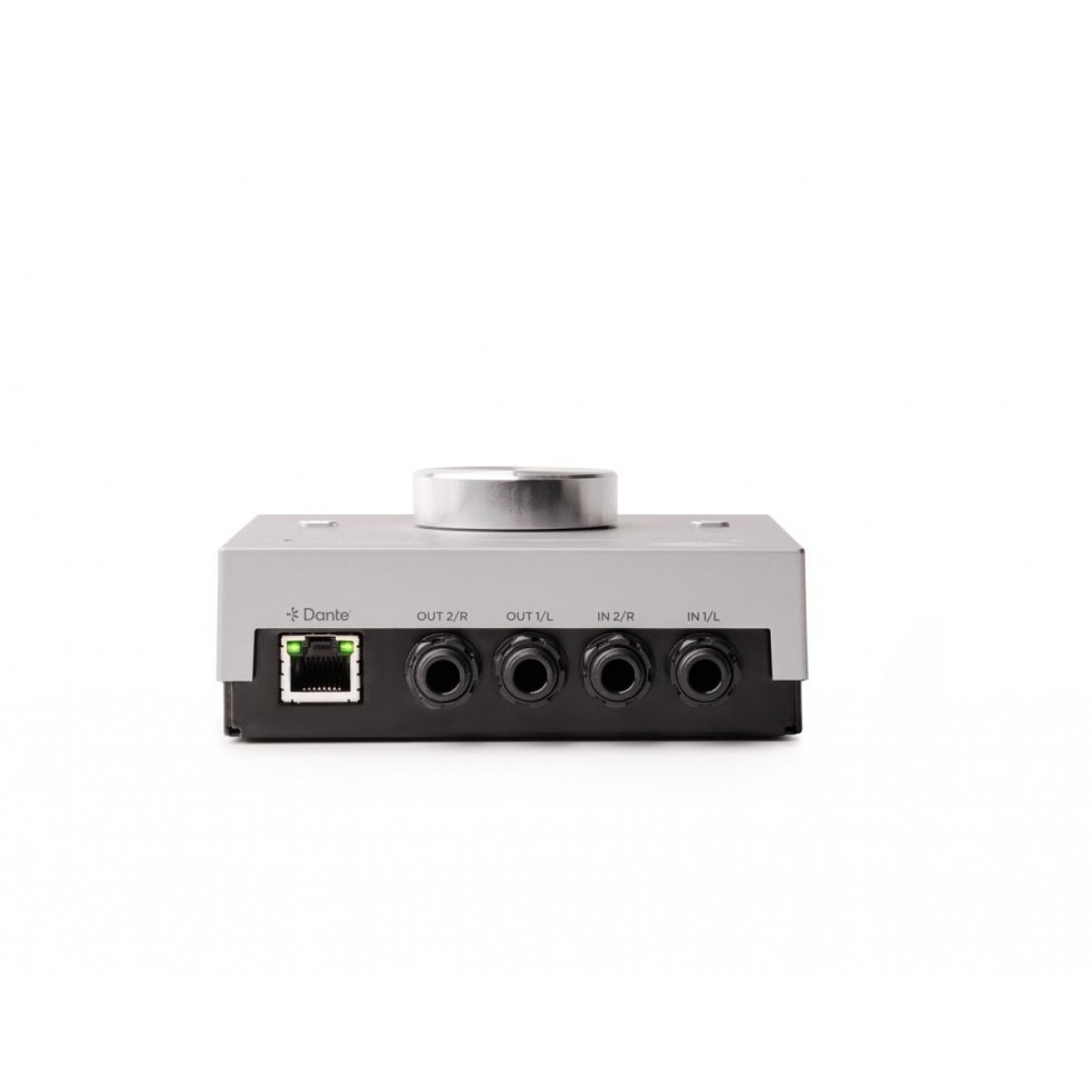

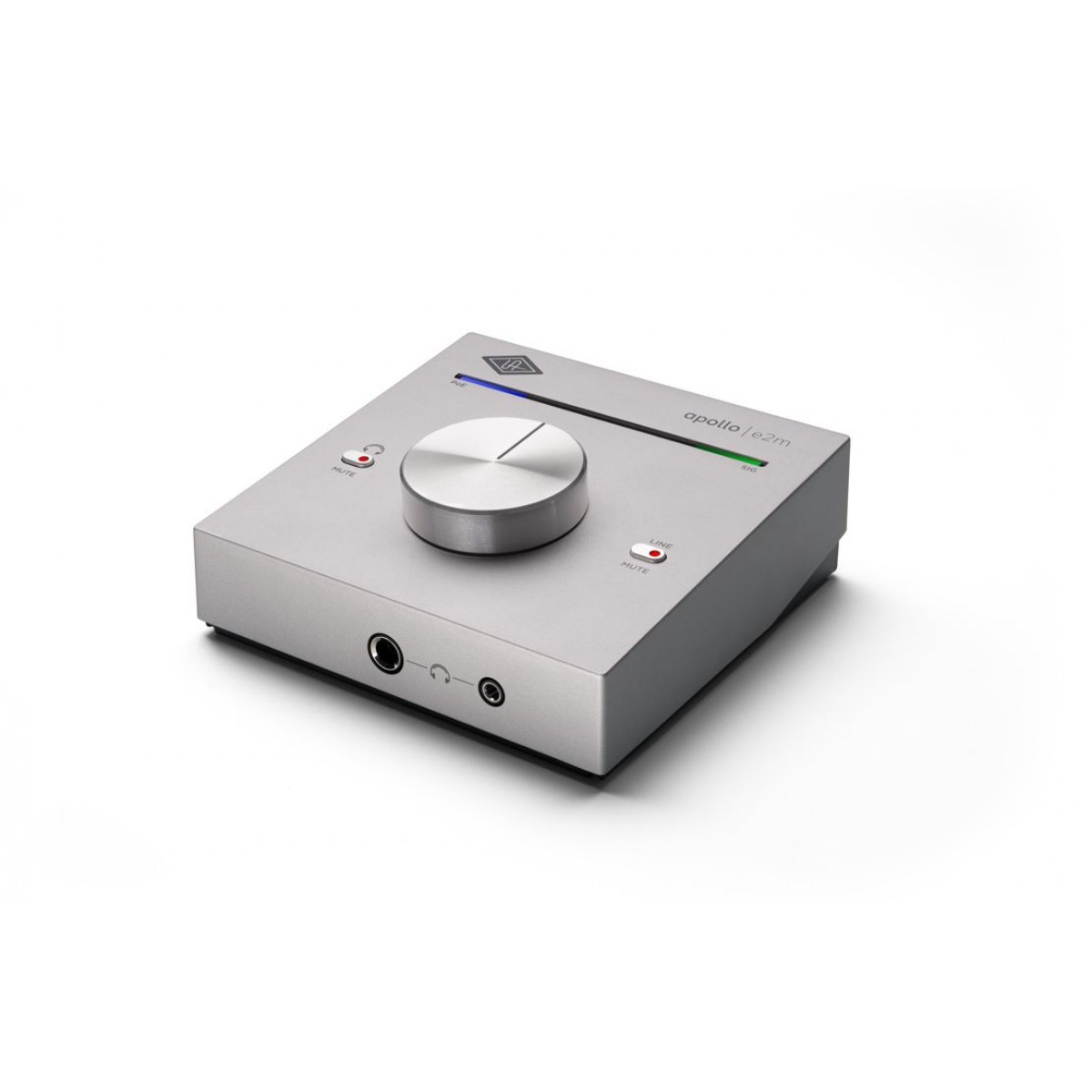

Apollo E2M Stereo Headphone Amplifier and Line Interface (Dante)

Apollo e2m is a stereo PoE powered personal monitoring station interoperable with any Dante network. When used with an Apollo x16D, use the option in UAD Console to mirror headphone mixes to Dante outputs of Apollo x16D, which can then be routed to Apollo e2m via Dante Controller.

If you have any other Dante-enabled device, such as a digital console or audio interface, you can route to Apollo e2m using Dante Controller when these devices are on a Dante Network.

Apollo e2m Specifications

• 7W of PoE power (5W typical)
• Analog input to Dante output latency is selectable in Dante Controller with 1ms, 2ms, or 5ms options
• Selectable sample rates of 44.1, 48 kHz, 96 kHz
• AES67 compatible (48 kHz only)
• Analog inputs:
  • Dynamic Range: 120 dB
  • THD+N: -115 dB
• Analog outputs:
  • Dynamic Range: 120 dB
  • THD+N: -112 dB (Headphones)
  • THD+N: -109 dB (Line outs)

Dante is an AOIP (Audio over IP) protocol that transmits digital audio over Ethernet between Dante-enabled devices such as Apollo x16D, Apollo e2m, and Apollo e1x. Audio on a Dante network is routed using the application.
