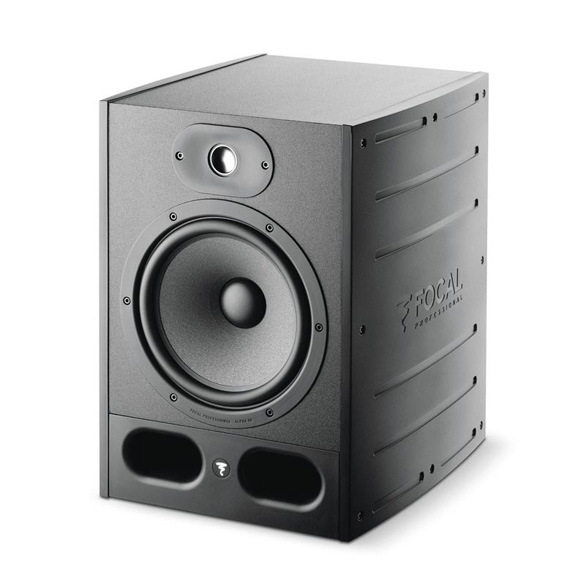

ALPHA 80 220/240 EU VERSION

Description

ACTIVE 2-WAY PROFESSIONAL LOUDSPEAKER

Flagship of the line, the monitoring loudspeaker Alpha 80 is particularly ideal for producing music which is rich in bass or which requires high power reserves.

This model is composed of a 8” (21cm) woofer/ midrange speaker with a Polyglass cone loaded in a large laminar port and of a 1″ (25mm) aluminum inverted dome tweeter. It features a 40W amplifier for the tweeter and a 100W amplifier for the woofer, and has a frequency response of 35Hz to 22kHz (+/- 3dB).

Key points

• Low directivity: keeps the same sound throughout the room
• Damping and rigidity: neutrality, no distortion
• Tonal balance is identical at low and high volumes, low sensitivity to the wall effects
• Connect up to 2 audio sources
• Optimal acoustic integration
• Reduced power consumption

Specifications

• Frequency response (+/- 3dB): 35Hz – 22kHz
• Power 140W (100W+40W)
• Maximum SPL: 109dB SPL (pic @ 1m)

Electronic section

• Inputs Connectors: XLR balanced 10kOhms RCA unbalanced 10kOhms with sensitivity compensation
• LF amplifier stage: 100W, class AB
• HF amplifier stage: 40W, class AB
• Standby mode Standby
• Activation of the monitor: After about 30 minutes without using the monitor By signal detection >3 mV
• Power supply (The voltage can not be modified): 220-240V (fuse T1.6AL/250V) or 100-120V (fuse T3.15AL/250V)
• Connection IEC inlet and detachable power cord

User controls

• Sensitivity: Adjustable, 0 or +6dB
• LF shelving (0 – 300Hz): Adjustable, +/-6dB
• HF shelving (4.5 – 22kHz): Adjustable, +/-3dB
• Power ON/OFF: Switch on rear panel
• Standby mode power consumption: < 0,5W
• Indicators: Power ON/OFF LED – Standby LED

Transducers

• Woofer: 8″ (21cm) drive unit – Polyglass cone
• Tweeter: 1″ (25mm) drive unit. Aluminium inverted dome

Cabinet

• Construction: 0.6″ (15mm) MDF
• Finish: Vinyl and Black painting
• Dimensions with 4 rubber pads (HxWxD): 15.6×11.3×13.7″ (397 x 287 x 348mm)
• Weight: 28.2lb (12.8kg)
