ALPHA 65 220/240 EU VERSION

Description

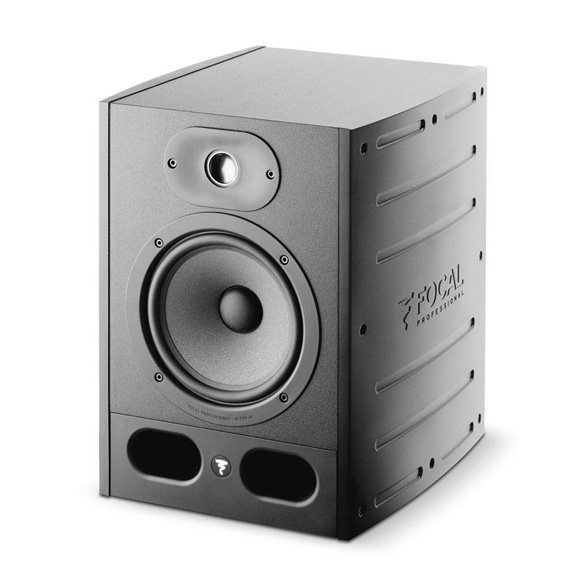

ACTIVE 2-WAY NEAR FIELD PROFESSIONAL MONITORING LOUDSPEAKER

The Alpha 65 performs just as well with instrumental music as with electronic music, and is characterized by its great versatility.

This model is composed of a 6.5” (16.5cm) woofer/ midrange speaker with a Polyglass cone loaded in a large laminar port associated to a 70W amplifier and of a 1″ (25mm) aluminum inverted dome tweeter (35W amplifier). Alpha 65 has a frequency response of 40Hz to 22kHz (+/- 3dB).

Key points

• Low directivity: keeps the same sound throughout the room
• Damping and rigidity: neutrality, no distortion
• Tonal balance is identical at low and high volumes; low sensitivity to the wall effects
• Connect up to 2 audio sources
• Optimal acoustic integration
• Reduced power consumption

Specifications

• Frequency response (+/- 3dB):40Hz – 22kHz
• Power: 105W (70W+35W)
• Maximum SPL: 106dB SPL (pic @ 1m)

Electronic section

• Inputs Connectors: XLR balanced 10kOhms, RCA unbalanced 10kOhms with sensitivity compensation
• LF amplifier stage: 70W, class AB
• HF amplifier stage: 35W, class AB
• Standby mode Standby
• Activation of the monitor: After about 30 minutes without using the monitor By signal detection >3 mV
• Power supply (The voltage can not be modified): 220-240V (fuse T800mAL/250V) or 100-120V (fuse T1.6AL/250V)
• Connection: IEC inlet and detachable power cord

User Controls

• Sensitivity: Adjustable, 0 or +6dB
• LF shelving (0 – 300Hz): Adjustable, +/-6dB
• HF shelving (4.5 – 22kHz): Adjustable, +/-3dB
• Power ON/OFF: Switch on rear panel
• Standby mode power consumption: < 0,5W
• Indicators: Power ON/OFF LED – Standby LED

Transducers

• Woofer: 6.5″ (16.5cm) drive unit – Polyglass cone
• Tweeter: 1″ (25mm) drive unit Aluminium inverted dome

Cabinet

• Construction: 0.6″ (15mm) MDF
• Finish: Vinyl and Black painting
• Dimensions with 4 rubber pads (HxWxD): 13.7×9.9×12.2″ (348 x 252 x 309mm)
• Weight: 20.7lb (9.4kg)
