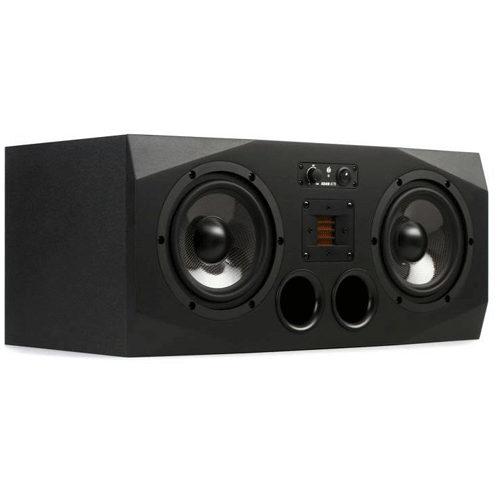

Adam Audio A77X 3-Way Active Studio Monitor Speaker

Description

A revolutionary formula: 2 x 7 = 77
In some set-ups it can be advisable to use a horizontally designed speaker rather than a vertical one. Until now, such monitors were only available within the SX top line. The brand new A77X, due to its outstanding features, might become a true game changer: Equipped with the same advanced technologies as the A7X, it therefore is very similar to the two-way speaker. The A77X, however, distinguishes itself by much higher, compression-free maximum sound pressure levels and dynamics. Due to its power and radiation characteristics, it also is perfectly suited for both near- and midfield monitoring.

Driver technology
Like all models of the AX, the A77X features the ADAM proprietary X-ART tweeter. The ‘X’ stands for ‘eXtended frequency response’ and thus for one of the features of the Accelerating Ribbon Technology that has been drastically improved: the frequency response. It now extends all the way up to 50kHz. In addition, the X-ART tweeter has higher efficiency and higher maximum sound pressure levels. The two 7” woofers are identical with that of the A7X. With their large voice coils (1.5”) and powerful amplifiers they are capable of both very high maximum sound pressure levels as well as very deep registers. The woofers do not cover the same frequency bands: while one of them is responsible for the (sub-) bass frequencies up to about 400Hz, the other takes over most of the midrange.

Amplifiers / controls
Each driver has its own dedicated amplifier. A 50W A/B amp is responsible for the X-ART tweeter, while the bass-/ midwoofers are driven by a 100W PWM amp each. The front panel includes a power switch and a control for the volume that retains the volume setting independently from the on/off switch.

The rear panel features several additional controls: a gain for the high frequencies (± 4dB) and two shelf filters for
high and low frequencies. To ensure greater compatibility, there are both XLR (balanced) and RCA (unbalanced) connectors.

WOOFER

• Number: 2
• Basket Ø: 7″ (175 mm)
• Voice Coil Ø: 1.5″ (38 mm)
• Cone Material: Carbon/Rohacell/Glass Fiber

TWEETER

• Number: 1
• Type: X-ART
• Diaphragm Area: 4 inch² (2420 mm²)
• Equiv. Diaphragm Ø: 2″ (56 mm)
• Velocity Transform Ratio: 4:1
• Diaphragm Weight: 0.17 g

BUILT-IN AMPLIFIERS

• Woofer: 1
• Type: PWM
• Amp. Power RMS / Music: 100 W / 150 W
• Subwoofer: 1
• Type: PWM
• Amp. Power RMS / Music: 100 W / 150 W
• Tweeter: 1
• Type: A/B
• Amp. power RMS / music: 50 W / 75 W

CONTROL PANEL

• Input Sensitivity: -∞ to +14 dB
• High Shelf EQ > 5 kHz: ±6 dB
• Low Shelf EQ < 300 Hz: ±6 dB
• Tweeter Gain: ±4 dB

INPUT CONNECTORS

• Analog: XLR / RCA

GENERAL DATA

• Frequency Response: 38 Hz – 50 kHz
• THD 90 dB / 1 m > 100 Hz: ≤0.5 %
• Max. SPL with sine wave acoustic 100 Hz to 3 kHz at 1 m: ≥114 dB
• Max. SPL per pair at 1 m: ≥122 dB
• Crossover Frequencies: 400 / 3000 Hz
• Input Impedance: 30 kOhm
• Panel: Front
• Weight: 28.2 lb (12,8 kg)
• Magnetically Shielded: No
• Height x Width x Depth: 9.5″ (235 mm) x 21″ (530 mm) x 11″ (280 mm)
• Delivery Contents: Power cord, manual
